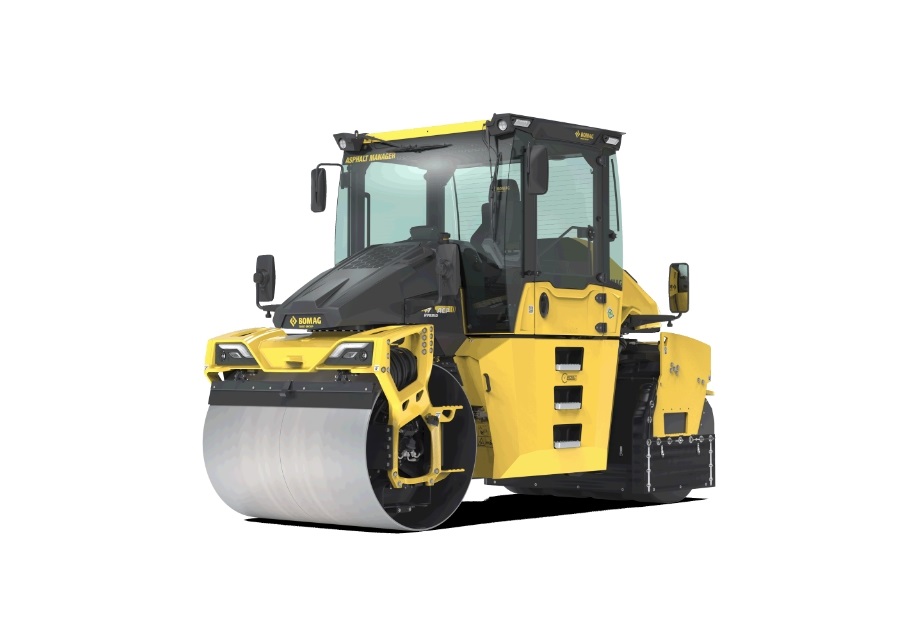

BW 154 ACP-5 AM Bomag BW 154 ACP-5 AM Specifications & Technical Data (2022—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 154 ACP-5 AM Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.5 t
- Transport length
- 3.99 m
- Transport width
- 1.68 m
- Transport height
- 3.02 m
- Vibration
- d
- Drive
- A
- Steering
- KL
- Travel speed
- 11 km/h
- Frequency
- 47 Hz
- Roller width
- 1.5 m
- Turning radius outside
- 2.95 m
- Statical line load
- 27 kg/cm
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V3307 -T
- Engine power
- 55.4 kW
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 4
- Emission level
- Stage V / TIER4f
More technical details, like: rollers Ø, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
Yes
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
Yes
