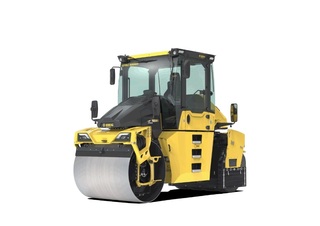

BW 154 ACP-5 Bomag BW 154 ACP-5 Specifications & Technical Data (2022—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 154 ACP-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.3 t
- Transport length
- 3.99 m
- Transport width
- 1.68 m
- Transport height
- 3.02 m
- Vibration
- e
- Drive
- A
- Steering
- DSL
- Travel speed
- 11 km/h
- Frequency
- 60 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.1 m
- Turning radius outside
- 2.95 m
- Statical line load
- 25.4 kg/cm
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V3307 CR-T
- Engine power
- 55.4 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 4
- Emission level
- V/Tier 4f
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Bomag BW 154 ACP-5 FAQ
How much does the Bomag BW 154 ACP-5 weigh?
What are the transport dimensions of the Bomag BW 154 ACP-5?
What is the travel speed of the Bomag BW 154 ACP-5?
What type of drive does the undercarriage of the Bomag BW 154 ACP-5 have?
What are the maneuverability specifications of the Bomag BW 154 ACP-5?
What are the compaction capabilities of the Bomag BW 154 ACP-5?
What are the roller specifications of the Bomag BW 154 ACP-5?
