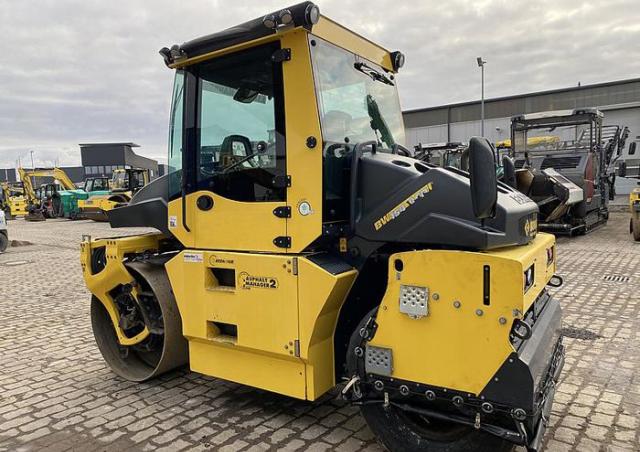

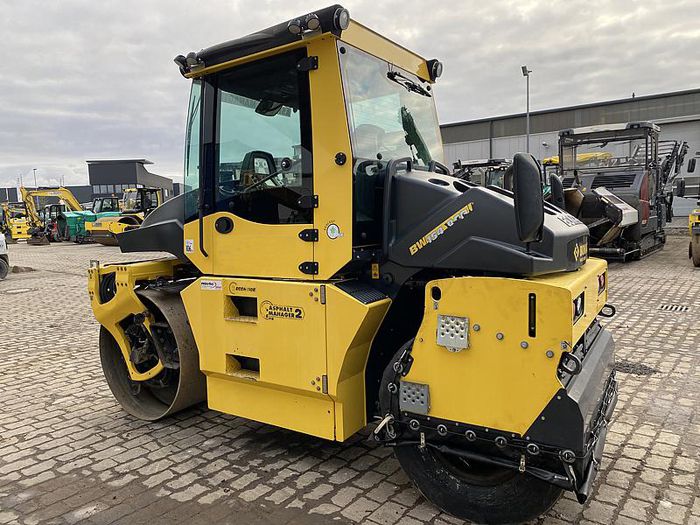

BW 154 ACP-4 AM Bomag BW 154 ACP-4 AM Specifications & Technical Data (2019—2022)
Visit Bomag live at
Technical specs - BW 154 ACP-4 AM Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.4 t
- Transport length
- 3.99 m
- Transport width
- 1.665 m
- Transport height
- 2.95 m
- Vibration
- e
- Drive
- A
- Steering
- DSL
- Travel speed
- 10 km/h
- Frequency
- 45 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.1 m
- Turning radius outside
- 2.95 m
- Statical line load
- 25 kg/cm
- Engine manuf.
- Kubota
- Engine type
- V3307DI-T
- Engine power
- 55 kW
- Displacement
- 3.3 l
- No. of cylinders
- 4
- Emission level
- V / Tier 4 f
More technical details, like: model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Bomag BW 154 ACP-4 AM FAQ
How much does the Bomag BW 154 ACP-4 AM weigh?
What are the transport dimensions of the Bomag BW 154 ACP-4 AM?
What is the travel speed of the Bomag BW 154 ACP-4 AM?
What type of drive does the Bomag BW 154 ACP-4 AM have in its undercarriage?
What are the maneuverability specifications of the Bomag BW 154 ACP-4 AM?
What are the compaction capabilities of the Bomag BW 154 ACP-4 AM?
What are the roller specifications of the Bomag BW 154 ACP-4 AM?
How much is a Bomag BW 154 ACP-4 AM Combination Roller (2019u20132022) worth?
