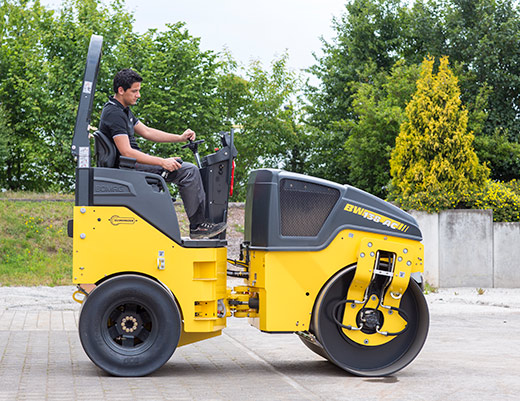

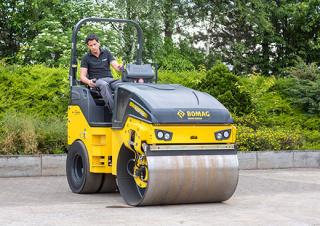

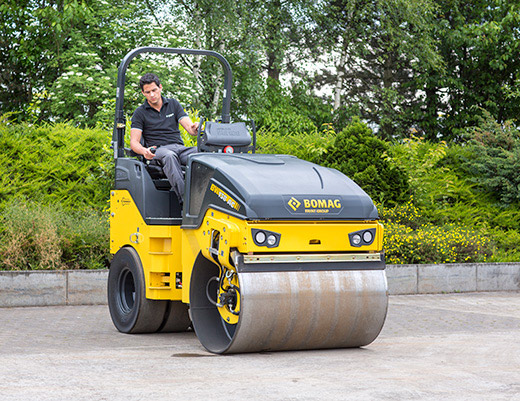

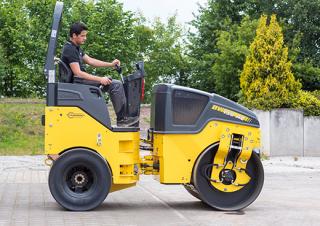

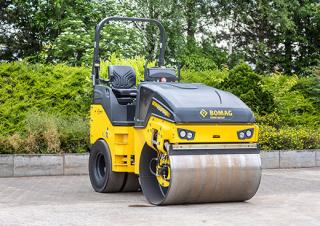

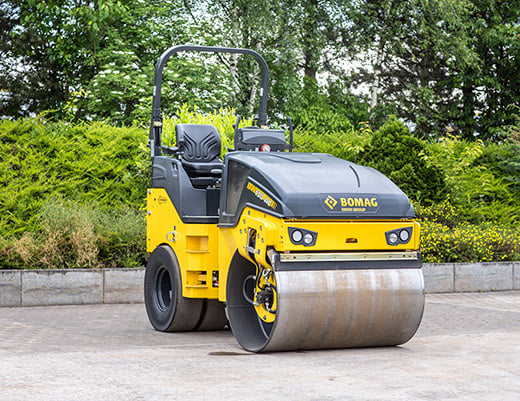

BW 138 AC-5 Bomag BW 138 AC-5 Specifications & Technical Data (2015—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BW 138 AC-5 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.1 t
- Transport length
- 2.84 m
- Transport width
- 1.47 m
- Transport height
- 2.7 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 56 Hz
- Roller width
- 1.4 m
- Rollers Ø
- 0.9 m
- Turning radius outside
- 2.62 m
- Statical line load
- 15.6 kg/cm
- Model series
- BW
- Engine manuf.
- Kubota
- Engine type
- V2403
- Engine power
- 33.6 kW
- Revolutions at max torque
- 2400 rpm
- Emission level
- V
More technical details, like: dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
Yes
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
