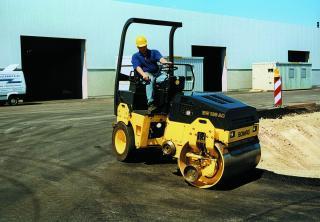

BW 138 AC Bomag BW 138 AC Specifications & Technical Data (2004—2008)
.jpg)
Visit Bomag live at
Technical specs - BW 138 AC Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4 t
- Transport length
- 2.58 m
- Transport width
- 1.46 m
- Transport height
- 2.075 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 52 Hz
- Roller width
- 1.38 m
- Rollers Ø
- 0.81 m
- Statical line load
- 15 kg/cm
- Model series
- BW
- Engine manuf.
- Deutz
- Engine type
- F3L2011
- Engine power
- 35.8 kW
More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Bomag BW 138 AC FAQ
How much does the Bomag BW 138 AC weigh?
What are the transport dimensions of the Bomag BW 138 AC?
What is the travel speed of the Bomag BW 138 AC?
What type of undercarriage drive does the Bomag BW 138 AC have?
What type of steering system does the Bomag BW 138 AC use for maneuverability?
What are the compaction capabilities of the Bomag BW 138 AC?
What are the roller specifications of the Bomag BW 138 AC?
How much is a Bomag BW 138 AC Combination Roller (2004u20132008) worth?
