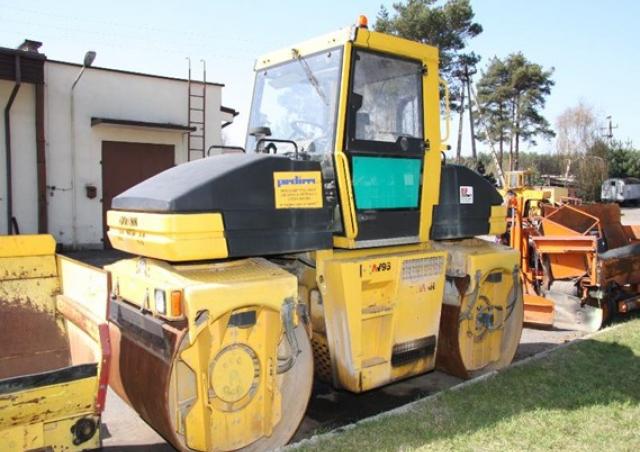

AV 95 K Ammann AV 95 K Specifications & Technical Data (1995—1998)

Weight: 8.7t – Transport length: 4.2m – Transport width: 1.7m – Transport height: 3.02m – Vibration: e – Travel speed: 10km/h

Rollers Combination Rollers Ammann AV 95 K

Visit Ammann live at

Technical specs - AV 95 K Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.7 t
Transport length
4.2 m
Transport width
1.7 m
Transport height
3.02 m
Vibration
e
Travel speed
10 km/h
Frequency
50 Hz
Roller width
1.6 m
Rollers Ø
1.2 m
Turning radius outside
4.25 m
Statical line load
29.7 kg/cm
Model series
AV
Engine manuf.
Deutz
Engine type
BF4M1012
Engine power
58 kW

More technical details, like: drive, steering, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Oscillation
No
Compression control
No
Aircondition
No

Ammann AV 95 K FAQ

When was the Ammann AV 95 K manufactured?

The Ammann AV 95 K was manufactured from 1995 to 1998.

How much does the Ammann AV 95 K weigh?

The Ammann AV 95 K weighs 8.7 tons.

What are the transport dimensions of the Ammann AV 95 K?

The Ammann AV 95 K has a transport length of 4.2 meters, a transport width of 1.7 meters, and a transport height of 3.02 meters.

What is the travel speed of the Ammann AV 95 K combination roller?

The Ammann AV 95 K has a travel speed of 10 km/h.

What is the turning radius of the Ammann AV 95 K combination roller?

The Ammann AV 95 K has an outside turning radius of 4.25 meters.

What are the compaction capabilities of the Ammann AV 95 K combination roller?

The Ammann AV 95 K features a single vibration system operating at a frequency of 50 Hz and has a statical line load of 29.7 kg/cm.

What are the roller specifications of the Ammann AV 95 K?

The Ammann AV 95 K has rollers with a width of 1.6 meters and a diameter of 1.2 meters.
