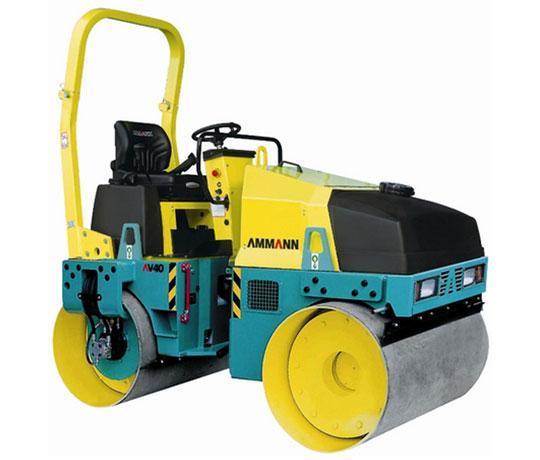

AV 40 K Ammann AV 40 K Specifications & Technical Data (1998—2006)
Technical specs - AV 40 K Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.6 t
- Transport length
- 2.58 m
- Transport width
- 1.37 m
- Transport height
- 2.6 m
- Vibration
- e
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 63 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.74 m
- Turning radius outside
- 3.5 m
- Statical line load
- 15.4 kg/cm
- Model series
- AV
- Engine manuf.
- Yanmar
- Engine type
- 3TNE88A
- Engine power
- 21.6 kW
- Revolutions at max torque
- 2500 rpm
More technical details, like: drive, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Ammann AV 40 K FAQ
How much does the Ammann AV 40 K weigh?
What are the transport dimensions of the Ammann AV 40 K?
What is the travel speed of the Ammann AV 40 K?
What are the maneuverability specifications of the Ammann AV 40 K combination roller?
What are the compaction capabilities of the Ammann AV 40 K combination roller?
What are the roller specifications of the Ammann AV 40 K combination roller?
