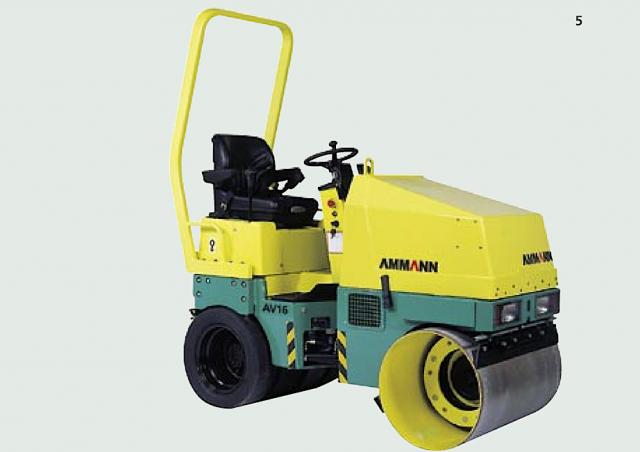

AV 16 Ammann AV 16 Specifications & Technical Data (1995—2006)
Visit Ammann live at
Technical specs - AV 16 Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.65 t
- Transport length
- 2.14 m
- Transport width
- 0.95 m
- Transport height
- 2.3 m
- Vibration
- e/d
- Steering
- KL
- Travel speed
- 7 km/h
- Frequency
- 57 Hz
- Roller width
- 0.95 m
- Rollers Ø
- 0.575 m
- Turning radius outside
- 2.66 m
- Statical line load
- 9.4 kg/cm
- Model series
- AV
- Engine manuf.
- Yanmar
- Engine type
- 3TNE74
- Engine power
- 13.2 kW
More technical details, like: drive, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
