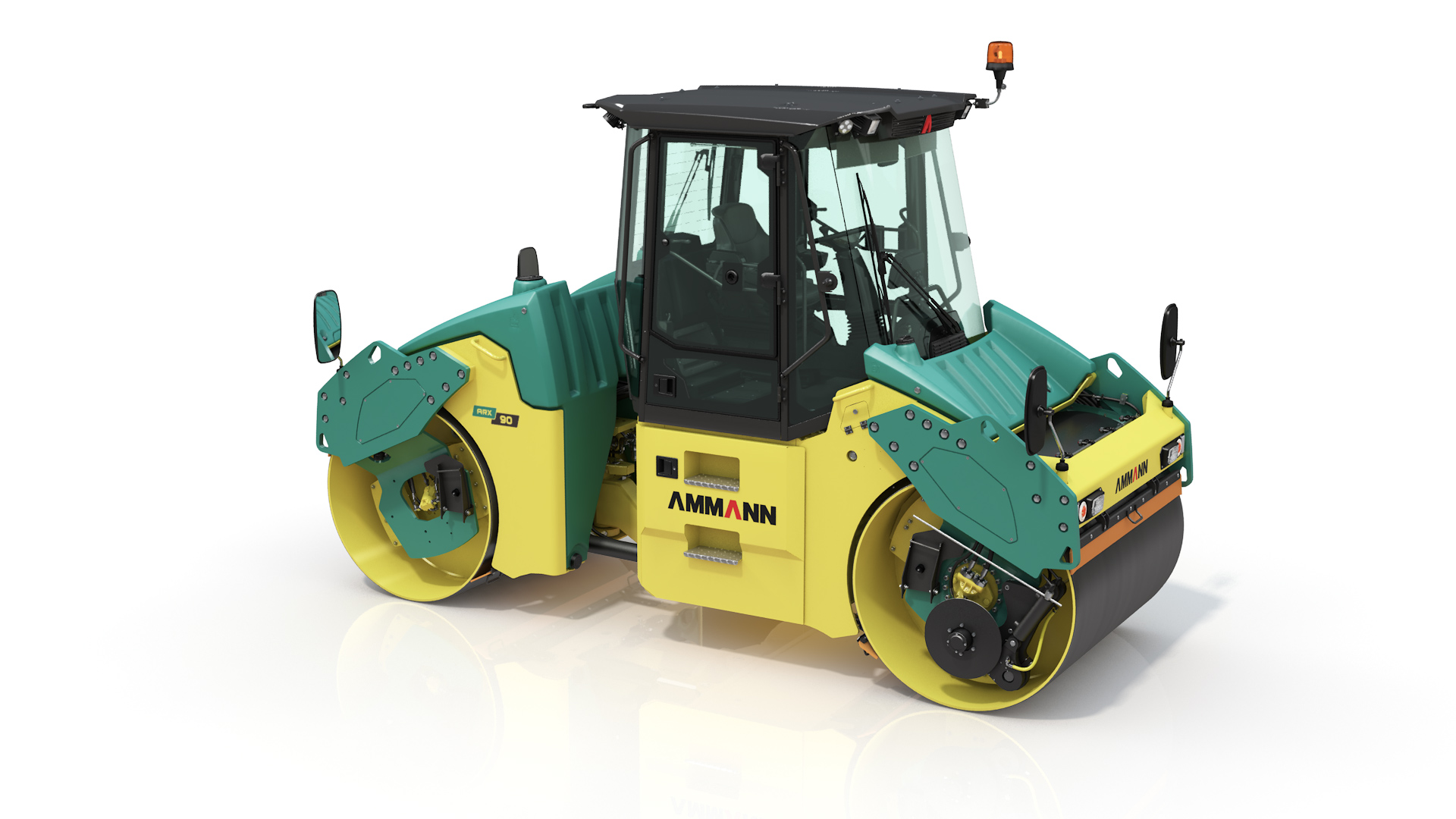

ARX 90 C T4 f Ammann ARX 90 C T4 f Specifications & Technical Data (2018—2023)

Weight: 9.56t – Transport length: 4.72m – Transport width: 1.8m – Transport height: 3m – Vibration: e – Drive: A

Rollers Combination Rollers Ammann ARX 90 C T4 f

ARX 90 C T4 f

Years of manufacture: 2018—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 90 C T4 f Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.56 t

Transport length: 4.72 m

Transport width: 1.8 m

Transport height: 3 m

Vibration: e

Drive: A

Steering: KL

Travel speed: 10.5 km/h

Frequency: 54 Hz

Roller width: 1.68 m

Rollers Ø: 1.22 m

Statical line load: 28.5 kg/cm

Model series: ARX

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 74 kW

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 4

Emission level: V/Tier 4 f

More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: Yes
Aircondition: Yes

Download datasheets (PDF)

Ammann ARX 90 C T4 f FAQ

When was the Ammann ARX 90 C T4 f manufactured?

The Ammann ARX 90 C T4 f was manufactured from 2018 to 2023.

How much does the Ammann ARX 90 C T4 f weigh?

The Ammann ARX 90 C T4 f weighs 9.56 tons.

What are the transport dimensions of the Ammann ARX 90 C T4 f?

The Ammann ARX 90 C T4 f has a transport length of 4.72 meters, a transport width of 1.8 meters, and a transport height of 3 meters.

What is the travel speed of the Ammann ARX 90 C T4 f?

The Ammann ARX 90 C T4 f has a travel speed of 10.5 km/h.

What type of undercarriage drive does the Ammann ARX 90 C T4 f have?

The Ammann ARX 90 C T4 f has an all-wheel drive undercarriage.

What type of steering does the Ammann ARX 90 C T4 f use for maneuverability?

The Ammann ARX 90 C T4 f uses articulated-frame steering for maneuverability.

What is the vibration frequency and statical line load of the Ammann ARX 90 C T4 f?

The Ammann ARX 90 C T4 f has a single vibration system operating at a frequency of 54 Hz and a statical line load of 28.5 kg/cm.

What are the roller specifications of the Ammann ARX 90 C T4 f?

The Ammann ARX 90 C T4 f has a roller width of 1.68 meters and roller diameters of 1.22 meters.
