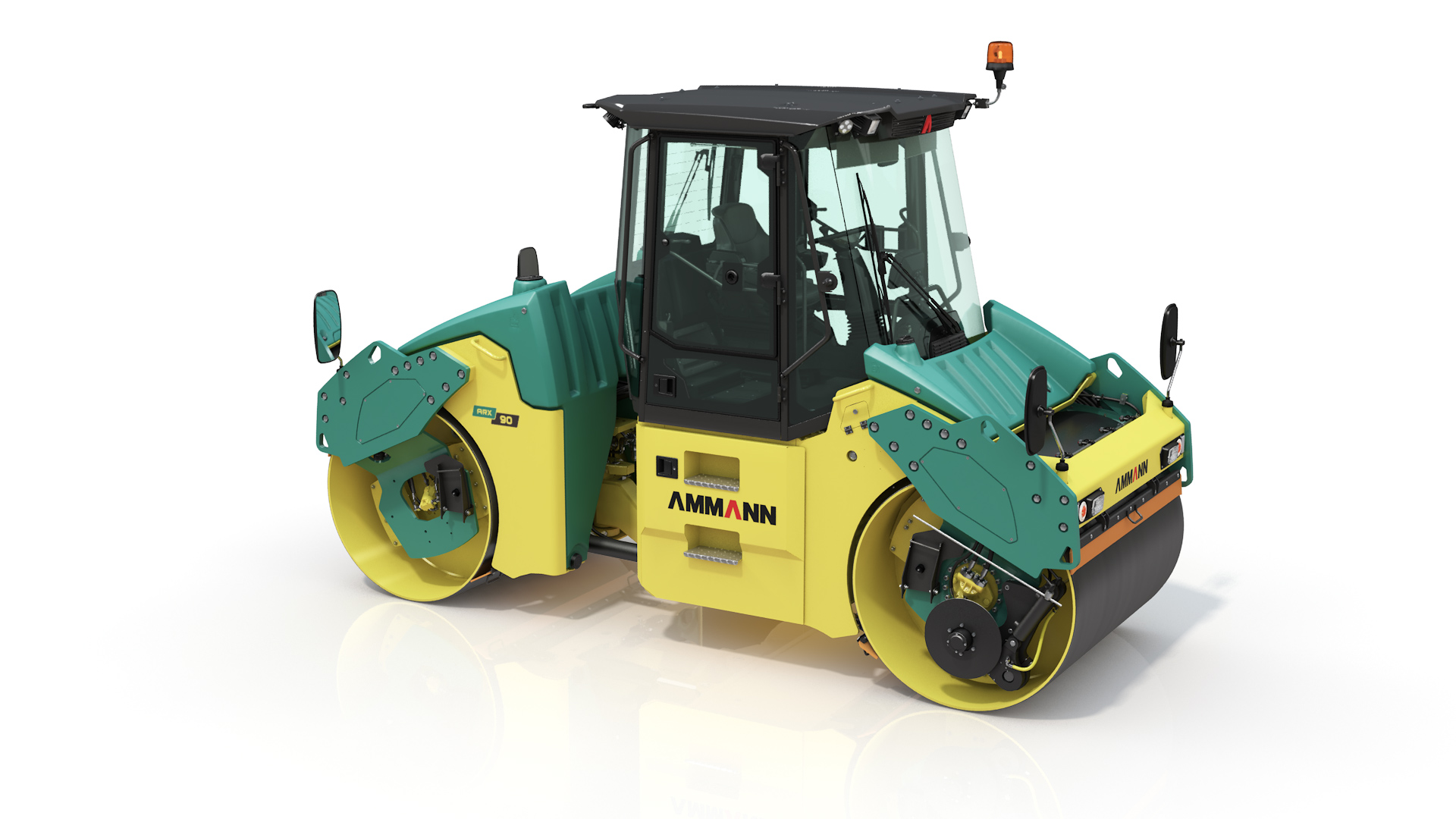

ARX 90 C St V Ammann ARX 90 C St V Specifications & Technical Data (2023—2026)

Weight: 9.57t – Transport length: 4.72m – Transport width: 1.67m – Transport height: 3m – Vibration: e – Drive: A

ARX 90 C St V

Years of manufacture: 2023—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 90 C St V Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.57 t

Transport length: 4.72 m

Transport width: 1.67 m

Transport height: 3 m

Vibration: e

Drive: A

Steering: KL

Travel speed: 10.5 km/h

Frequency: 54 Hz

Roller width: 1.68 m

Rollers Ø: 1.22 m

Statical line load: 28.5 kg/cm

Model series: ARX

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 19 kW

Displacement: 1.826 l

Revolutions at max torque: 2400 rpm

No. of cylinders: 3

Emission level: EU V

More technical details, like: turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: Yes
Aircondition: Yes

Ammann ARX 90 C St V FAQ

When was the Ammann ARX 90 C St V manufactured?

The Ammann ARX 90 C St V was first produced in 2023.

How much does the Ammann ARX 90 C St V weigh?

The Ammann ARX 90 C St V weighs 9.57 tons.

What are the transport dimensions of the Ammann ARX 90 C St V?

The Ammann ARX 90 C St V has a transport length of 4.72 meters, a transport width of 1.67 meters, and a transport height of 3 meters.

What is the travel speed of the Ammann ARX 90 C St V?

The Ammann ARX 90 C St V has a travel speed of 10.5 km/h.

What type of drive system does the Ammann ARX 90 C St V have in its undercarriage?

The Ammann ARX 90 C St V features an all-wheel drive system in its undercarriage.

What type of steering does the Ammann ARX 90 C St V use for maneuverability?

The Ammann ARX 90 C St V uses articulated-frame steering for maneuverability.

What are the compaction capabilities of the Ammann ARX 90 C St V?

The Ammann ARX 90 C St V features a single vibration system operating at 54 Hz and has a statical line load of 28.5 kg/cm.

What are the roller specifications of the Ammann ARX 90 C St V?

The Ammann ARX 90 C St V has a roller width of 1.68 meters and roller diameter of 1.22 meters.

How much is a Ammann ARX 90 C St V Combination Roller (2023u20132025) worth?

The residual value of the Ammann ARX 90 C St V depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
