ARX 45 K Ammann ARX 45 K Specifications & Technical Data (2013—2021)

Weight: 4.5t – Transport length: 2.8m – Transport width: 1.42m – Transport height: 2.8m – Vibration: e – Drive: A

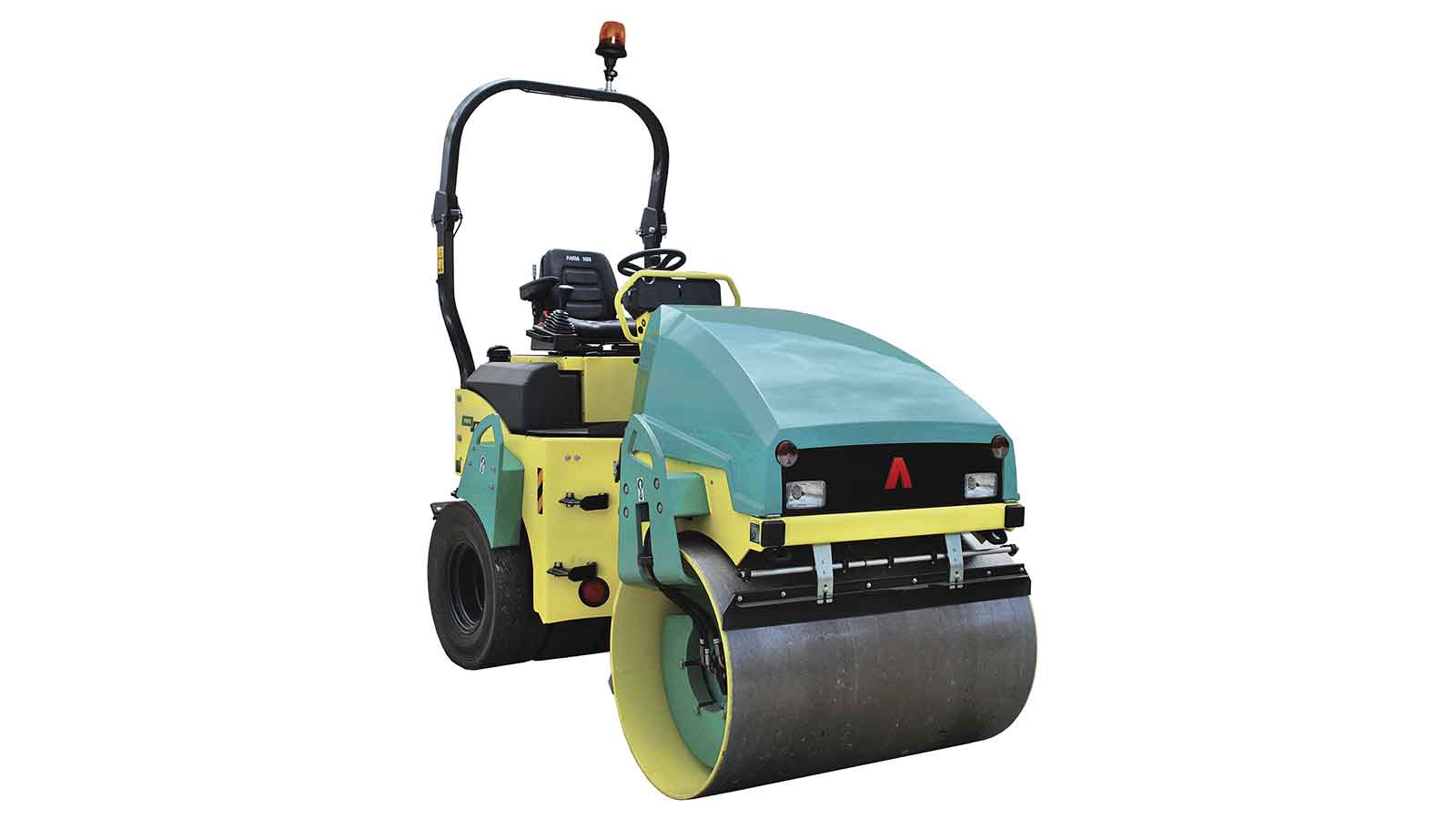

Rollers Combination Rollers Ammann ARX 45 K

ARX 45 K

Years of manufacture: 2013—2021

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 45 K Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.5 t

Transport length: 2.8 m

Transport width: 1.42 m

Transport height: 2.8 m

Vibration: e

Drive: A

Steering: KL

Travel speed: 10 km/h

Frequency: 57 Hz

Roller width: 1.38 m

Rollers Ø: 0.85 m

Turning radius outside: 2.621 m

Statical line load: 16.8 kg/cm

Model series: Light Tandem Rollers

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 30 kW

Displacement: 2.2 l

Revolutions at max torque: 2200 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Ammann ARX 45 K FAQ

When was the Ammann ARX 45 K manufactured?

The Ammann ARX 45 K was manufactured from 2013 to 2021.

How much does the Ammann ARX 45 K weigh?

The Ammann ARX 45 K weighs 4.5 tons.

What are the transport dimensions of the Ammann ARX 45 K?

The Ammann ARX 45 K has a transport length of 2.8 meters, a transport width of 1.42 meters, and a transport height of 2.8 meters.

What is the travel speed of the Ammann ARX 45 K?

The Ammann ARX 45 K has a travel speed of 10 km/h.

What are the undercarriage specifications of the Ammann ARX 45 K?

The Ammann ARX 45 K features an all-wheel drive system.

What are the maneuverability specifications of the Ammann ARX 45 K combination roller?

The Ammann ARX 45 K has an articulated-frame steering system and an outside turning radius of 2.621 meters.

What are the compaction capabilities of the Ammann ARX 45 K?

The Ammann ARX 45 K features a single vibration system operating at a frequency of 57 Hz and has a statical line load of 16.8 kg/cm.

What are the roller specifications of the Ammann ARX 45 K combination roller?

The Ammann ARX 45 K has rollers that are 1.38 meters wide with a diameter of 0.85 meters.
