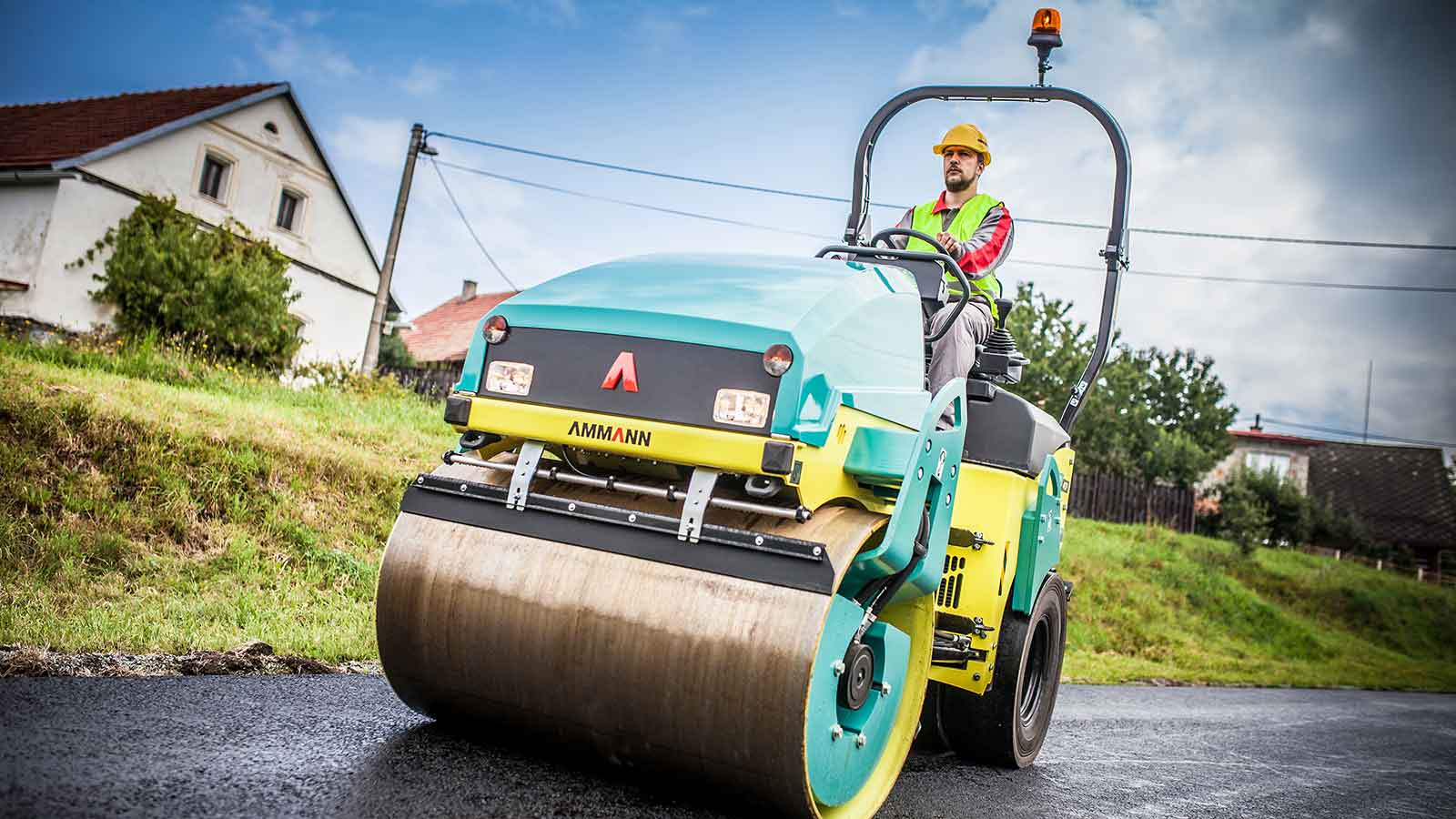

ARX 40 K Ammann ARX 40 K Specifications & Technical Data (2013—2021)

Weight: 4t – Transport length: 2.8m – Transport width: 1.34m – Transport height: 2.8m – Vibration: e – Drive: A

Rollers Combination Rollers Ammann ARX 40 K

ARX 40 K

Years of manufacture: 2013—2021

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARX 40 K Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4 t

Transport length: 2.8 m

Transport width: 1.34 m

Transport height: 2.8 m

Vibration: e

Drive: A

Steering: KL

Travel speed: 10 km/h

Frequency: 57 Hz

Roller width: 1.3 m

Rollers Ø: 0.85 m

Turning radius outside: 2.58 m

Statical line load: 15.8 kg/cm

Model series: Light Tandem Rollers

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 30 kW

Displacement: 2.2 l

Revolutions at max torque: 2200 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: Yes
Aircondition: No

Download datasheets (PDF)

Ammann ARX 40 K FAQ

When was the Ammann ARX 40 K manufactured?

The Ammann ARX 40 K was manufactured from 2013 to 2021.

How much does the Ammann ARX 40 K weigh?

The Ammann ARX 40 K weighs 4 tons.

What are the transport dimensions of the Ammann ARX 40 K?

The Ammann ARX 40 K has a transport length of 2.8 meters, a transport width of 1.34 meters, and a transport height of 2.8 meters.

What is the travel speed of the Ammann ARX 40 K?

The Ammann ARX 40 K has a travel speed of 10 km/h.

What type of drive system does the Ammann ARX 40 K have in its undercarriage?

The Ammann ARX 40 K features an all-wheel drive system in its undercarriage.

What are the maneuverability specifications of the Ammann ARX 40 K combination roller?

The Ammann ARX 40 K has an articulated-frame steering system and an outside turning radius of 2.58 meters.

What are the compaction capabilities of the Ammann ARX 40 K?

The Ammann ARX 40 K features a single vibration system operating at a frequency of 57 Hz and has a statical line load of 15.8 kg/cm.

What are the roller specifications of the Ammann ARX 40 K?

The Ammann ARX 40 K has rollers that are 1.3 meters wide with a diameter of 0.85 meters.

How much is a Ammann ARX 40 K Combination Roller (2013u20132021) worth?

The residual value of the Ammann ARX 40 K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
