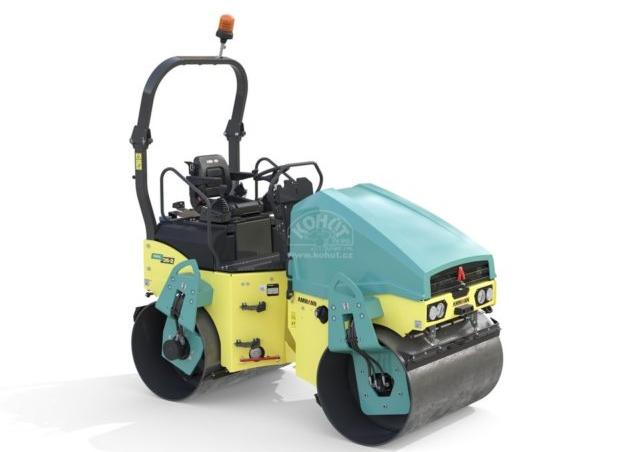

ARX 40-2 C T4f Ammann ARX 40-2 C T4f Specifications & Technical Data (2019—2023)

Weight: 4.06t – Transport length: 3m – Transport width: 1.39m – Transport height: 2.15m – Vibration: e – Drive: A

Rollers Combination Rollers Ammann ARX 40-2 C T4f

Technical specs - ARX 40-2 C T4f Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.06 t
Transport length
3 m
Transport width
1.39 m
Transport height
2.15 m
Vibration
e
Drive
A
Steering
KL
Travel speed
10 km/h
Frequency
55 Hz
Roller width
1.3 m
Rollers Ø
0.85 m
Turning radius outside
2.83 m
Statical line load
16.2 kg/cm
Model series
ARX
Engine manuf.
Kubota
Engine type
D1803-CB-E4B
Engine power
32.8 kW
Revolutions at max torque
2400 rpm
No. of cylinders
3
Emission level
Tier 4 f

More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin

Special equipment

Diesel particulate filter
No
Infrared heater
No
Oscillation
No
Compression control
Yes
Aircondition
No

Download datasheets (PDF)

Ammann ARX 40-2 C T4f FAQ

When was the Ammann ARX 40-2 C T4f manufactured?

The Ammann ARX 40-2 C T4f was manufactured from 2019 to 2023.

How much does the Ammann ARX 40-2 C T4f weigh?

The Ammann ARX 40-2 C T4f weighs 4.06 tons.

What are the transport dimensions of the Ammann ARX 40-2 C T4f?

The Ammann ARX 40-2 C T4f has a transport length of 3 meters, a transport width of 1.39 meters, and a transport height of 2.15 meters.

What is the travel speed of the Ammann ARX 40-2 C T4f?

The Ammann ARX 40-2 C T4f has a travel speed of 10 km/h.

What type of undercarriage drive does the Ammann ARX 40-2 C T4f have?

The Ammann ARX 40-2 C T4f has an all-wheel drive undercarriage.

What are the maneuverability specifications of the Ammann ARX 40-2 C T4f?

The Ammann ARX 40-2 C T4f has an articulated-frame steering system and an outside turning radius of 2.83 meters.

What are the compaction capabilities of the Ammann ARX 40-2 C T4f?

The Ammann ARX 40-2 C T4f features a single vibration system operating at a frequency of 55 Hz and has a statical line load of 16.2 kg/cm.

What are the roller specifications of the Ammann ARX 40-2 C T4f?

The Ammann ARX 40-2 C T4f has rollers that are 1.3 meters wide with a diameter of 0.85 meters.

How much is a Ammann ARX 40-2 C T4f Combination Roller (2019u20132023) worth?

The residual value of the Ammann ARX 40-2 C T4f depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
