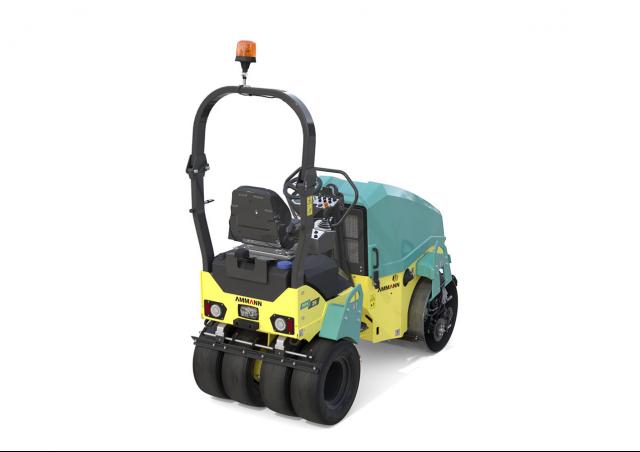

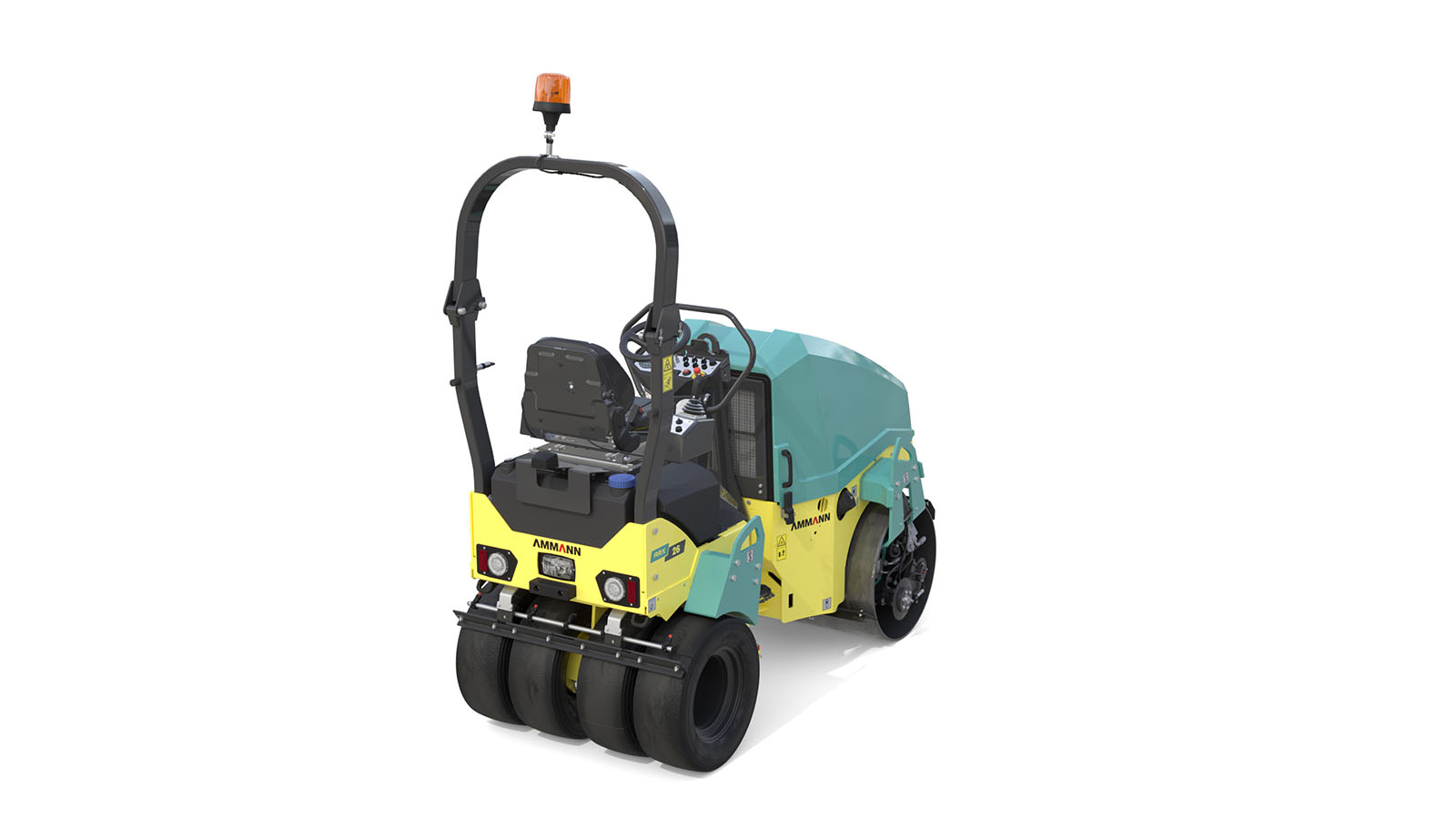

ARX 26.1-2C Ammann ARX 26.1-2C Specifications & Technical Data (2019—2023)
.jpg)
.jpg)
Technical specs - ARX 26.1-2C Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.32 t
- Transport length
- 3 m
- Transport width
- 1.385 m
- Transport height
- 2.15 m
- Vibration
- e
- Drive
- A
- Steering
- KL
- Travel speed
- 10 km/h
- Frequency
- 55 Hz
- Roller width
- 1.3 m
- Rollers Ø
- 0.85 m
- Turning radius outside
- 2.83 m
- Statical line load
- 17.4 kg/cm
- Model series
- ARX
- Engine manuf.
- Kubota
- Engine type
- D1703-M-DI
- Engine power
- 19 kW
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 3
- Emission level
- EU V
More technical details, like: dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
No
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
No
