ARP 95 K Ammann ARP 95 K Specifications & Technical Data (2015—2023)

Weight: 8.3t – Transport length: 4.42m – Transport width: 1.81m – Transport height: 3m – Vibration: e – Drive: A

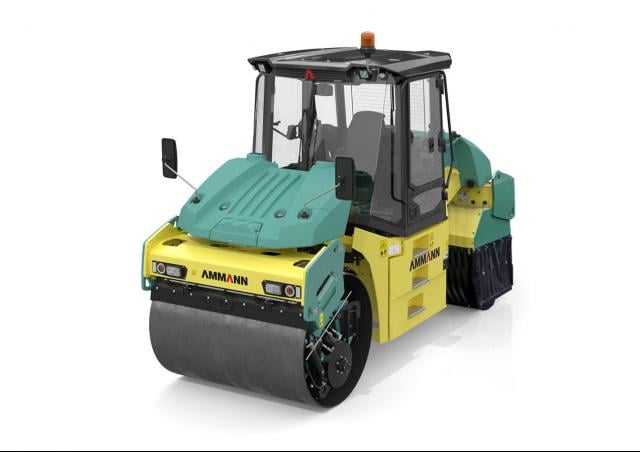

Rollers Combination Rollers Ammann ARP 95 K

ARP 95 K

Years of manufacture: 2015—2023

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - ARP 95 K Ammann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.3 t

Transport length: 4.42 m

Transport width: 1.81 m

Transport height: 3 m

Vibration: e

Drive: A

Steering: DSL

Travel speed: 12 km/h

Frequency: 52 Hz

Roller width: 1.68 m

Rollers Ø: 1.22 m

Turning radius outside: 2.95 m

Model series: ARP

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 74.4 kW

Displacement: 3.6 l

Emission level: Tier 4 i

More technical details, like: statical line load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

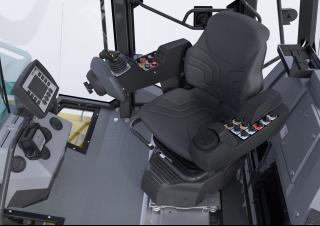

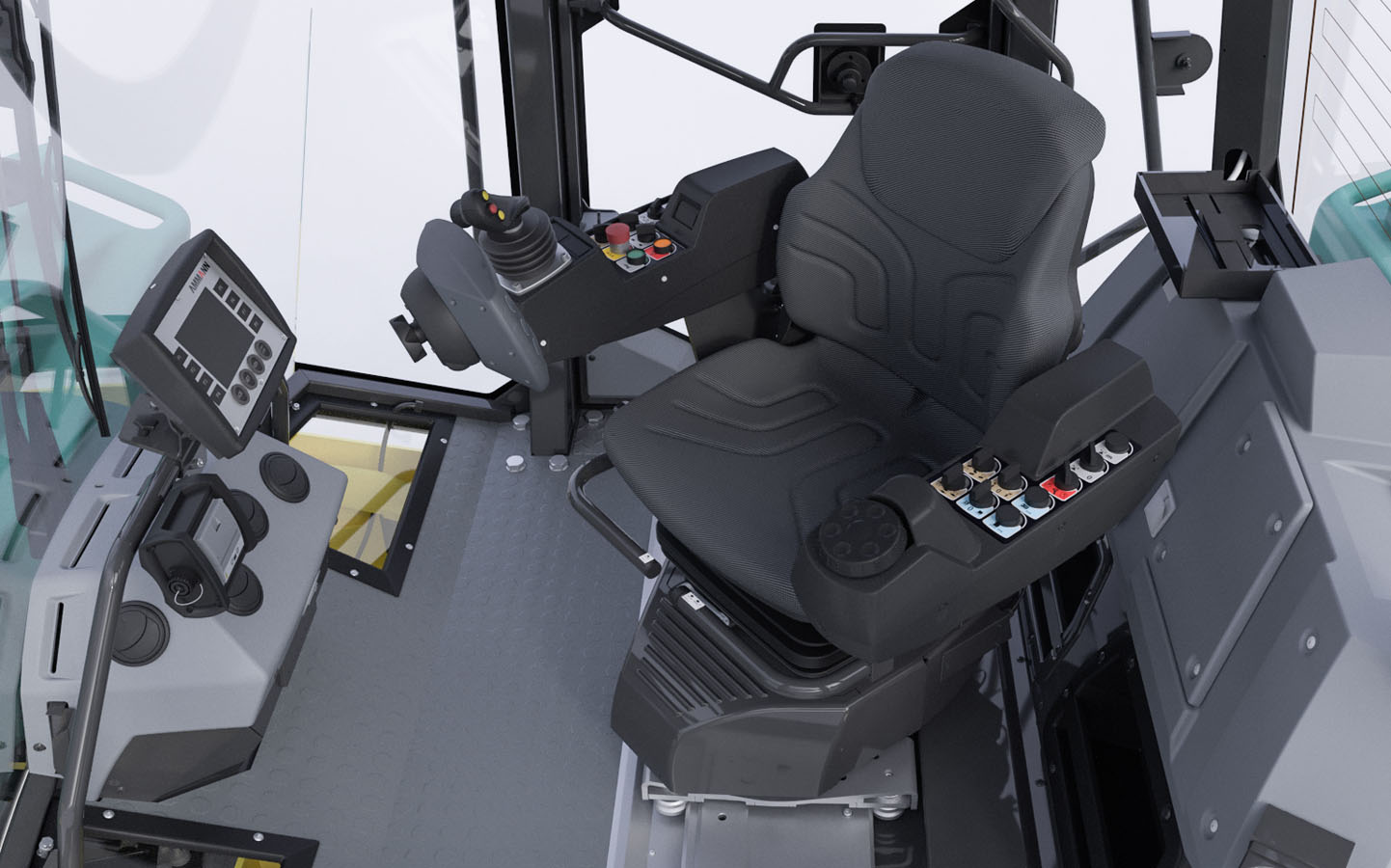

Basic model with ROPS cabin

Special equipment

Diesel particulate filter: No
Infrared heater: No
Oscillation: No
Compression control: Yes
Aircondition: Yes

Download datasheets (PDF)

Ammann ARP 95 K FAQ

When was the Ammann ARP 95 K manufactured?

The Ammann ARP 95 K was manufactured from 2015 to 2023.

How much does the Ammann ARP 95 K weigh?

The Ammann ARP 95 K weighs 8.3 tons.

What are the transport dimensions of the Ammann ARP 95 K?

The Ammann ARP 95 K has a transport length of 4.42 meters, a transport width of 1.81 meters, and a transport height of 3 meters.

What is the travel speed of the Ammann ARP 95 K?

The Ammann ARP 95 K has a travel speed of 12 km/h.

What type of undercarriage drive does the Ammann ARP 95 K have?

The Ammann ARP 95 K has an all-wheel drive undercarriage.

What are the maneuverability specifications of the Ammann ARP 95 K combination roller?

The Ammann ARP 95 K has a turning radius of 2.95 meters and features double center pivot plate steering.

What are the vibration specifications of the Ammann ARP 95 K related to its compaction capabilities?

The Ammann ARP 95 K features a single vibration system operating at a frequency of 52 Hz.

What are the roller specifications of the Ammann ARP 95 K?

The Ammann ARP 95 K has rollers with a width of 1.68 meters and a diameter of 1.22 meters.
