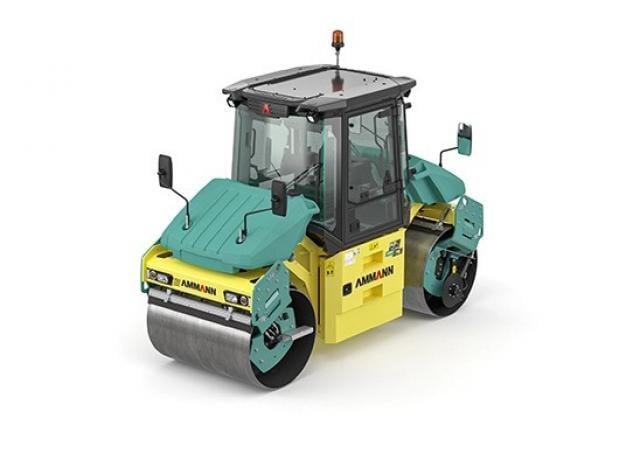

ARP 75 C Ammann ARP 75 C Specifications & Technical Data (2023—2026)
Visit Ammann live at
Technical specs - ARP 75 C Ammann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.51 t
- Transport length
- 4.1 m
- Transport width
- 1.67 m
- Transport height
- 3 m
- Vibration
- d
- Drive
- A
- Steering
- DSL
- Travel speed
- 10 km/h
- Frequency
- 55 Hz
- Roller width
- 1.5 m
- Rollers Ø
- 1.1 m
- Statical line load
- 25 kg/cm
- Model series
- ARP
- Engine manuf.
- Kubota
- Engine type
- V3307-CRT
- Engine power
- 54.4 kW
- No. of cylinders
- 4
- Emission level
- EU V
More technical details, like: turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Infrared heater
-
Yes
- Oscillation
-
No
- Compression control
-
Yes
- Aircondition
-
Yes
