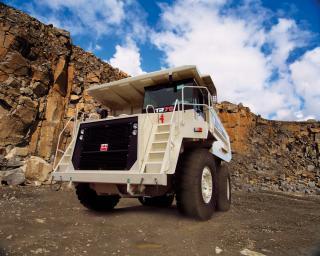

TR 70 Terex TR 70 Specifications & Technical Data (2000—2017)

Weight: 47.7t – Standard tyres: 24.00 R 35 – Dump capacity: 41.5m³ – Net load: 65t – Steering: VL – Transport length: 9.91m

Rigid Dump Trucks Terex TR 70

Technical specs - TR 70 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.7 t
Standard tyres
24.00 R 35
Dump capacity
41.5 m³
Net load
65 t
Steering
VL
Transport length
9.91 m
Transport width
4.45 m
Transport height
4.57 m
Travel speed
57 km/h
Turning radius outside
9.76 m
Loading height
4 m
Model series
TR
Engine manuf.
MTU
Engine type
12 V 2000 TA
Engine power
567 kW
Displacement
24 l
Revolutions at max torque
1350 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, engine manufacturer, engine model, aspiration, engine output - net, engine output - gross...

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, engine manufacturer, engine model, aspiration, engine output - net, engine output - gross, transmission type, drive configuration, final drive, tyre size, retarder - type, length - overall, height - max, height - over canopy / rock guard rail, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, width - over body, hoist - angle, fuel tank, engine oil, cooling system, transmission - system, body type, struck capacity, heaped capacity, gears - forward / reverse, speed - forward maximum, chassis with hoist, body weight, net weight, payload, gross weight, payload - highest possible are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
Yes
Tailgate
No
Aircondition
Yes

Download datasheets (PDF)

Terex TR 70 FAQ

When was the Terex TR 70 manufactured?

The Terex TR 70 was manufactured from 2000 to 2017.

How much does the Terex TR 70 rigid dump truck weigh?

The Terex TR 70 rigid dump truck weighs 47.7 tons.

What are the transport dimensions of the Terex TR 70 rigid dump truck?

The Terex TR 70 has a transport length of 9.91 meters, a transport width of 4.45 meters, and a transport height of 4.57 meters.

What is the travel speed of the Terex TR 70 rigid dump truck?

The Terex TR 70 has a travel speed of 57 km/h.

What are the undercarriage tyre specifications of the Terex TR 70 rigid dump truck?

The Terex TR 70 rigid dump truck is equipped with standard tyres sized 24.00 R 35.

What are the maneuverability specifications of the Terex TR 70 rigid dump truck?

The Terex TR 70 has a front steering system and an outside turning radius of 9.76 meters.

What is the material handling capacity of the Terex TR 70 rigid dump truck?

The Terex TR 70 has a net load capacity of 65 tons, a dump capacity of 41.5 cubic meters, and a loading height of 4 meters.

How much is a Terex TR 70 Rigid dump truck (2000u20132017) worth?

The residual value of the Terex TR 70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
