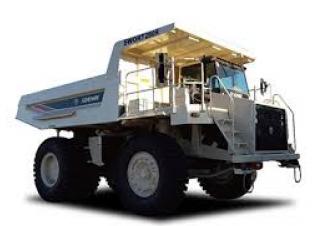

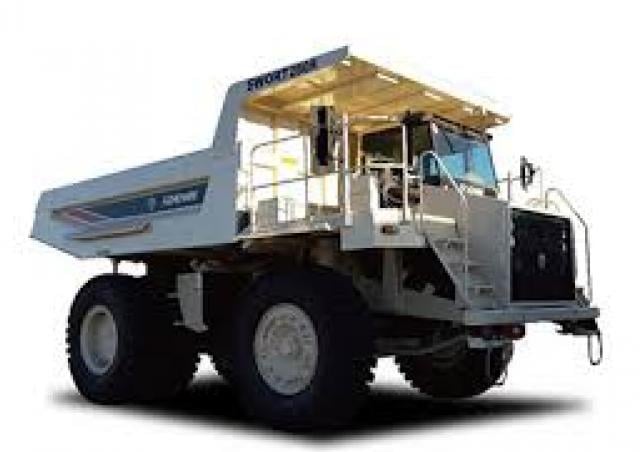

    Sinoway SWORT280R Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 18t – Standard tyres: 24.00 R35 – Dump capacity: 18m³ – Net load: 28t – Transport length: 7.65m – Transport width: 3.5m

    Technical specs - SWORT280R Sinoway

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 18 t
    • Standard tyres 24.00 R35
    • Dump capacity 18 m³
    • Net load 28 t
    • Transport length 7.65 m
    • Transport width 3.5 m
    • Transport height 3.8 m
    • Travel speed 50 km/h
    • Engine manuf. Cummins
    • Engine type M11-C300
    • Engine power 224 kW
    • No. of cylinders 6

    More technical details, like: steering, turning radius outside, loading height, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with ROPS cabin and std. trough

    Special equipment

    • Diesel particulate filter
    • Central lubrication
    • Heated dump body
    • Tailgate
    • Aircondition
