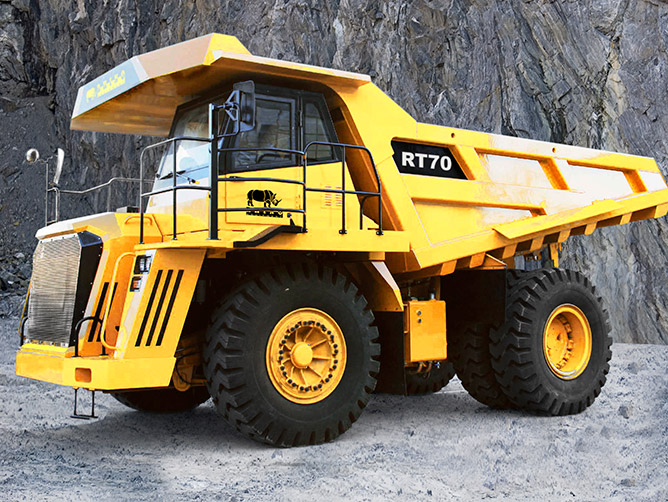

RT70 RHINO RT70 Specifications & Technical Data (2017—2026)

Weight: 111t – Standard tyres: 24.00 - 435 (42PR) E-4 – Dump capacity: 30m³ – Net load: 65t – Transport length: 9.752m – Transport width: 5.382m

Rigid Dump Trucks RHINO RT70

Technical specs - RT70 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
111 t
Standard tyres
24.00 - 435 (42PR) E-4
Dump capacity
30 m³
Net load
65 t
Transport length
9.752 m
Transport width
5.382 m
Transport height
4.615 m
Turning radius outside
10.5 m
Loading height
3.94 m
Model series
RT

More technical details, like: steering, travel speed, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download datasheets (PDF)

RHINO RT70 FAQ

When was the RHINO RT70 manufactured?

The RHINO RT70 was first produced in 2017.

How much does the RHINO RT70 weigh?

The RHINO RT70 weighs 111 tons.

What are the transport dimensions of the RHINO RT70 rigid dump truck?

The RHINO RT70 has a transport length of 9.75 meters, a transport width of 5.38 meters, and a transport height of 4.62 meters.

What are the undercarriage specifications of the RHINO RT70 rigid dump truck?

The RHINO RT70 rigid dump truck is equipped with standard tyres sized 24.00 - 435 (42PR) E-4.

What is the turning radius of the RHINO RT70 rigid dump truck?

The RHINO RT70 has an outside turning radius of 10.5 meters.

What is the material handling capacity of the RHINO RT70 rigid dump truck?

The RHINO RT70 has a net load capacity of 65 tons and a dump capacity of 30 cubic meters.

How much is a RHINO RT70 Rigid dump truck (2017u20132025) worth?

The residual value of the RHINO RT70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
