DE100C Liugong DE100C Specifications & Technical Data (2024—2026)

Weight: 72t – Standard tyres: 27.00R49 – Dump capacity: 46m³ – Net load: 97t – Transport length: 11.16m – Transport width: 5.654m

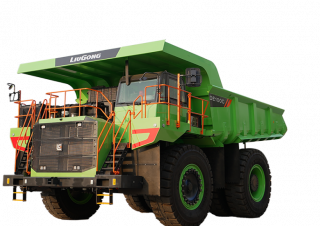

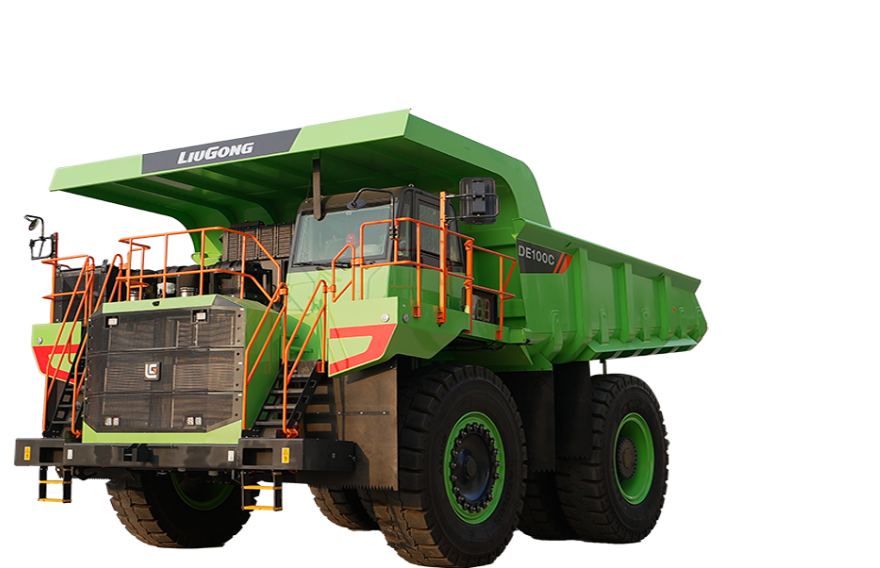

Rigid Dump Trucks Liugong DE100C

Visit Liugong live at

Technical specs - DE100C Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
72 t
Standard tyres
27.00R49
Dump capacity
46 m³
Net load
97 t
Transport length
11.16 m
Transport width
5.654 m
Transport height
5.299 m
Travel speed
36 km/h
Turning radius outside
10.6 m
Loading height
4.445 m
Model series
C
Engine manuf.
Cummins
Engine type
M15
Engine power
1126 kW
Displacement
14.5 l
Revolutions at max torque
1400 rpm
Max. torque
6000 Nm
Emission level
Stage III

More technical details, like: steering, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No
