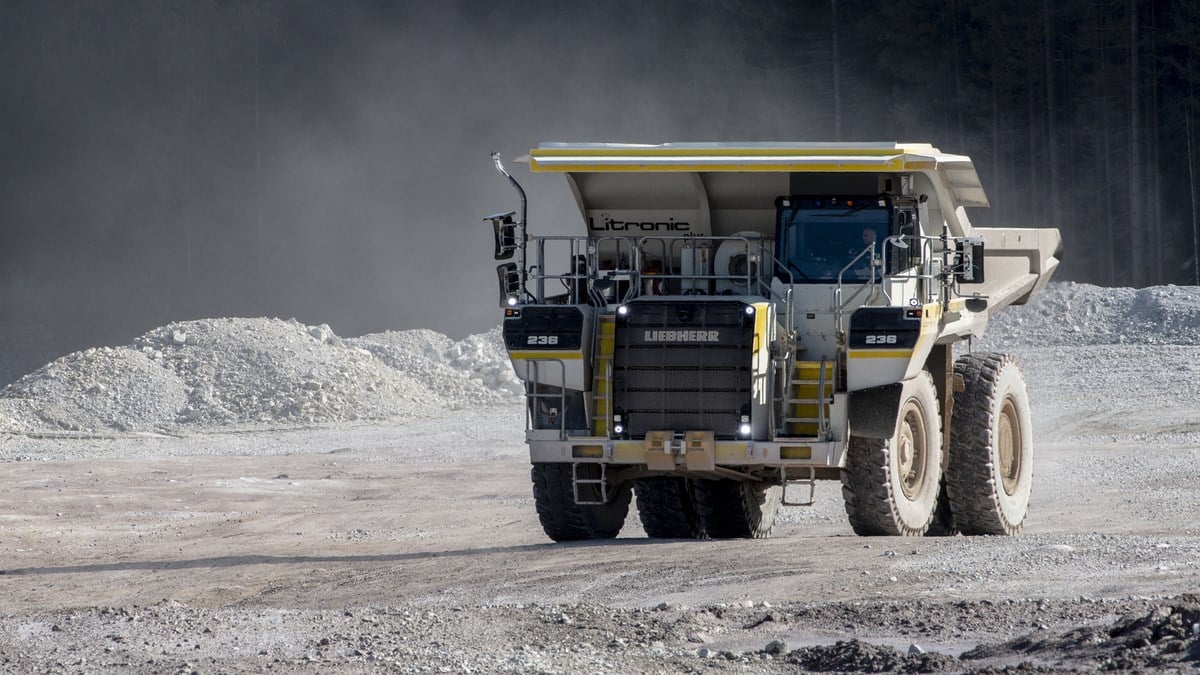

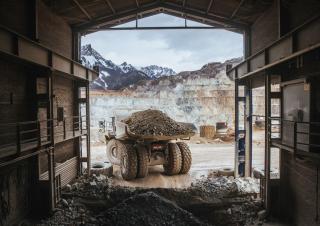

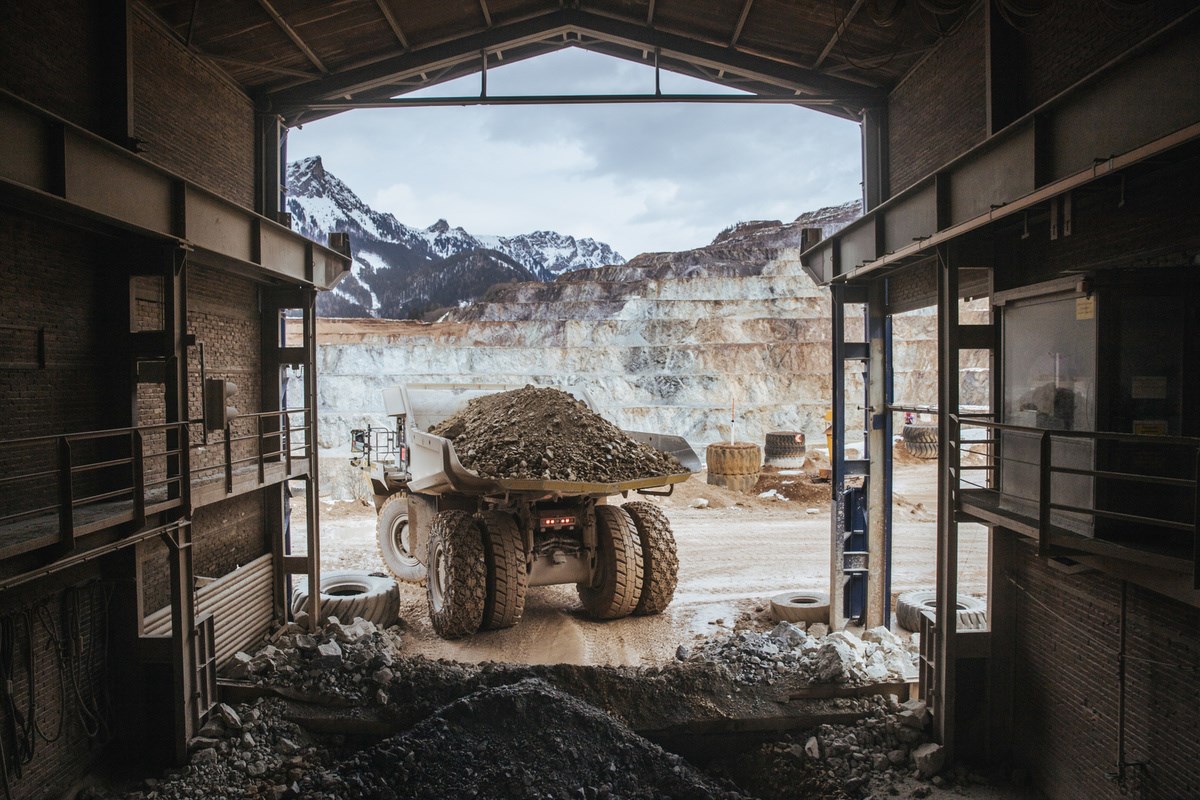

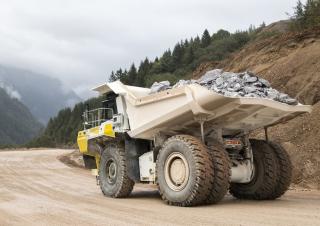

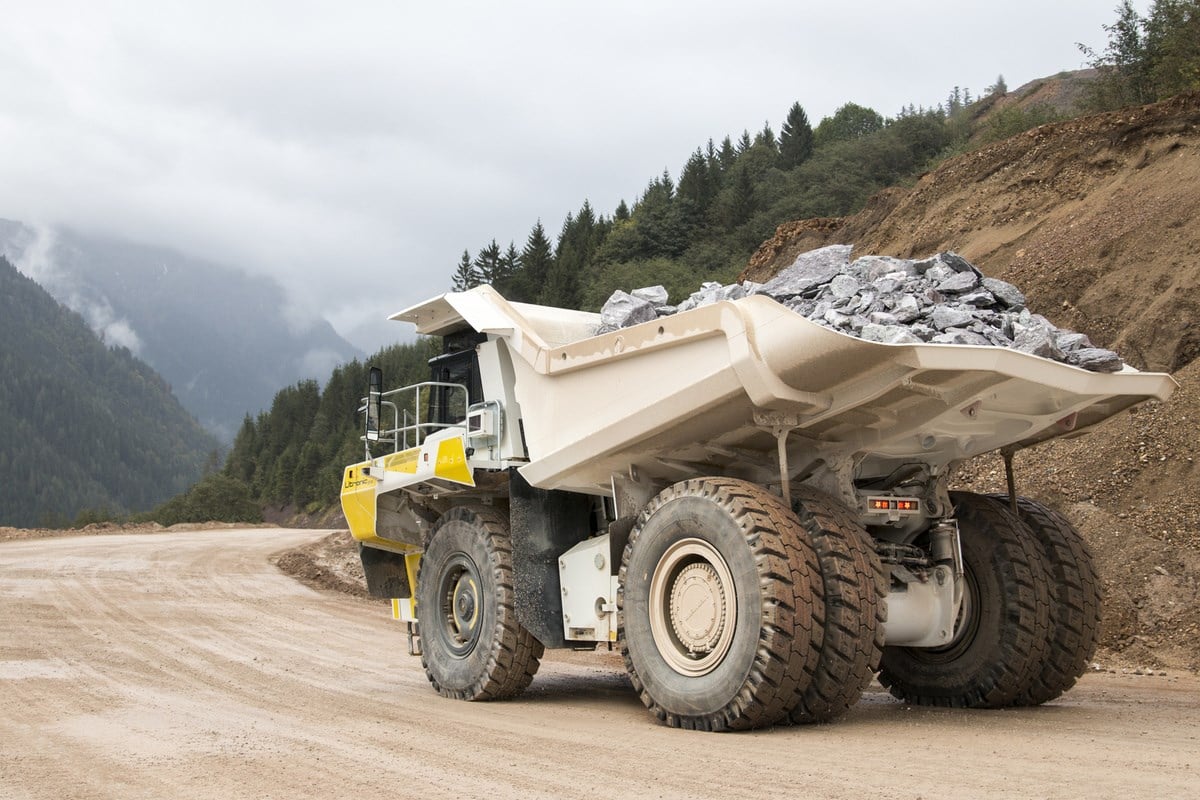

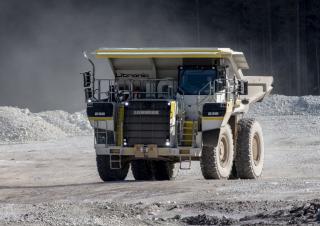

T 236 Liebherr T 236 Specifications & Technical Data (2016—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Liebherr live at
.jpg){kind=logo}
Technical specs - T 236 Liebherr
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 80 t
- Standard tyres
- 27.00 R49
- Dump capacity
- 62.5 m³
- Net load
- 100 t
- Steering
- VL
- Transport length
- 11.447 m
- Transport width
- 7.38 m
- Transport height
- 5.688 m
- Travel speed
- 55 km/h
- Turning radius outside
- 11.1 m
- Loading height
- 4.792 m
- Model series
- T
- Engine manuf.
- Cummins
- Engine type
- QST30-C
- Engine power
- 895 kW
- Displacement
- 30.5 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 5086 Nm
- No. of cylinders
- 12
- Cylinder bore x stroke
- 140x165 mm
- Emission level
- Tier 2
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
