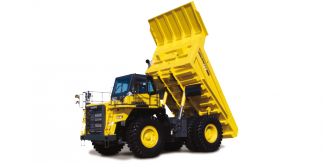

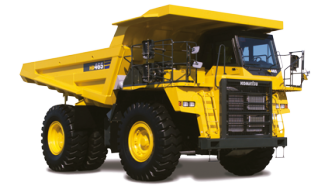

Komatsu HD465-7 Specifications & Technical Data (2002-2005)

Technical specs - HD465-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 43.11 t

Standard tyres: 24.00 R 35

Dump capacity: 34.2 m³

Net load: 55 t

Steering: VL

Transport length: 9.36 m

Transport width: 4.24 m

Transport height: 4.55 m

Travel speed: 70 km/h

Turning radius outside: 8.5 m

Loading height: 3.6 m

Model series: PC

Engine manuf.: Komatsu

Engine type: SAA6D170E-3

Engine power: 533 kW

Displacement: 23.15 l

Revolutions at max torque: 2000 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, decent control, telematics available, platform, engine manufacturer, engine model...

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, passenger seat, air conditioner, decent control, telematics available, platform, engine manufacturer, engine model, aspiration, cooling, engine output - net, engine output - gross, transmission type, drive configuration, final drive, speeds - forward, speeds - reverse, tyre size, retarder - type, length - overall, height - max, height - over canopy / rock guard rail, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, width - over body, hoist - angle, fuel tank, engine oil, transmission - system, body type, struck capacity, heaped capacity, retardation system - 1, gears - forward / reverse, speed - forward maximum, net weight, payload, gross weight, payload - highest possible are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: No

Download datasheets (PDF)

Komatsu HD465-7 FAQ

When was the Komatsu HD465-7 manufactured?

The Komatsu HD465-7 was manufactured from 2002 to 2005.

How much does the Komatsu HD465-7 weigh?

The Komatsu HD465-7 weighs 43.11 tons.

What are the transport dimensions of the Komatsu HD465-7 rigid dump truck?

The Komatsu HD465-7 has a transport length of 9.36 meters, a transport width of 4.24 meters, and a transport height of 4.55 meters.

What is the travel speed of the Komatsu HD465-7 rigid dump truck?

The Komatsu HD465-7 has a travel speed of 70 km/h.

What are the undercarriage specifications of the Komatsu HD465-7 rigid dump truck?

The Komatsu HD465-7 rigid dump truck is equipped with standard tyres sized 24.00 R 35.

What are the maneuverability specifications of the Komatsu HD465-7 rigid dump truck?

The Komatsu HD465-7 has a front steering system and an outside turning radius of 8.5 meters.

What is the material handling capacity of the Komatsu HD465-7 rigid dump truck?

The Komatsu HD465-7 has a net load capacity of 55 tons, a dump capacity of 34.2 cubic meters, and a loading height of 3.6 meters.

How much is a Komatsu HD465-7 Rigid dump truck (2002u20132005) worth?

The residual value of the Komatsu HD465-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
