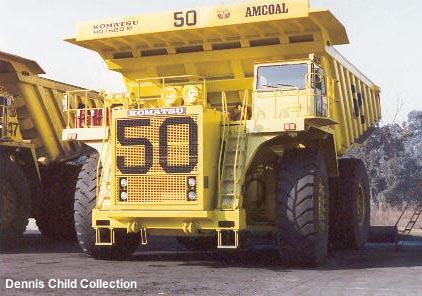

HD1600M-1 Komatsu HD1600M-1 Specifications & Technical Data (1984—1991)

Weight: 107.5t – Standard tyres: 36.00-51-50 PR – Transport length: 11.64m – Transport width: 6.6m – Transport height: 5.69m – Turning radius outside: 10.9m

Rigid Dump Trucks Komatsu HD1600M-1

Visit Komatsu live at

Technical specs - HD1600M-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
107.5 t
Standard tyres
36.00-51-50 PR
Transport length
11.64 m
Transport width
6.6 m
Transport height
5.69 m
Turning radius outside
10.9 m
Loading height
4.98 m
Model series
HD
Engine manuf.
Komatsu
Engine type
KTA-3067-C
Engine power
1197 kW
Displacement
50.3 l
Revolutions at max torque
2100 rpm

More technical details, like: dump capacity, net load, steering, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download datasheets (PDF)

Komatsu HD1600M-1 FAQ

When was the Komatsu HD1600M-1 manufactured?

The Komatsu HD1600M-1 was manufactured from 1984 to 1991.

How much does the Komatsu HD1600M-1 weigh?

The Komatsu HD1600M-1 weighs 107.5 tons.

What are the transport dimensions of the Komatsu HD1600M-1 rigid dump truck?

The Komatsu HD1600M-1 has a transport length of 11.64 meters, a transport width of 6.6 meters, and a transport height of 5.69 meters.

What are the standard tyres specifications of the Komatsu HD1600M-1 rigid dump truck?

The Komatsu HD1600M-1 rigid dump truck is equipped with standard tyres sized 36.00-51-50 PR.

What is the turning radius of the Komatsu HD1600M-1 rigid dump truck?

The Komatsu HD1600M-1 has an outside turning radius of 10.9 meters.

What is the loading height of the Komatsu HD1600M-1?

The Komatsu HD1600M-1 has a loading height of 4.98 meters.

How much is a Komatsu HD1600M-1 Rigid dump truck (1984u20131991) worth?

The residual value of the Komatsu HD1600M-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
