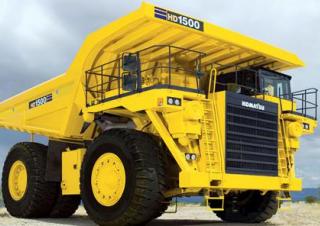

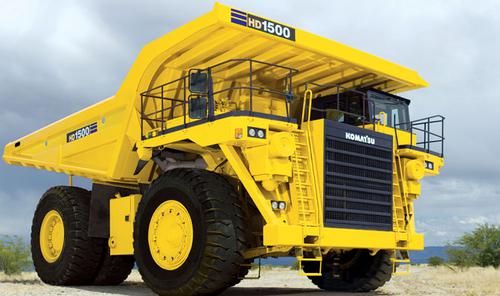

HD1500-5 Komatsu HD1500-5 Specifications & Technical Data (2001—2020)
Visit Komatsu live at
.jpg){kind=logo}
Technical specs - HD1500-5 Komatsu
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 100.462 t
- Standard tyres
- 33.00-R51
- Dump capacity
- 78 m³
- Net load
- 149 t
- Steering
- KL
- Transport length
- 11.37 m
- Transport width
- 5.915 m
- Transport height
- 5.85 m
- Travel speed
- 36.6 km/h
- Turning radius outside
- 24.4 m
- Model series
- HD
- Engine manuf.
- Komatsu
- Engine type
- SDA12V160
- Engine power
- 1048 kW
- Displacement
- 45 l
- Revolutions at max torque
- 1900 rpm
- Cylinder bore x stroke
- 159x190 mm
More technical details, like: loading height, dimension lxwxh, max. torque, no. of cylinders, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
Download datasheets (PDF)
Komatsu HD1500-5 FAQ
How much does the Komatsu HD1500-5 rigid dump truck weigh?
What are the transport dimensions of the Komatsu HD1500-5 rigid dump truck?
What is the travel speed of the Komatsu HD1500-5 rigid dump truck?
What is the standard tyre size of the undercarriage on the Komatsu HD1500-5 rigid dump truck?
What are the maneuverability specifications of the Komatsu HD1500-5 rigid dump truck?
What is the material handling capacity of the Komatsu HD1500-5 rigid dump truck?
How much is a Komatsu HD1500-5 Rigid dump truck (2001u20132020) worth?
