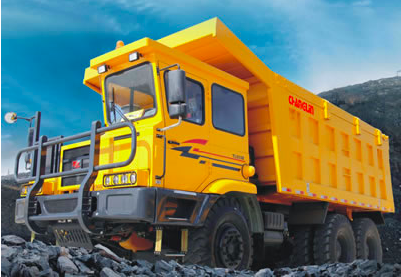

TL865 Changlin TL865 Specifications & Technical Data (2017—2026)
.png)
Technical specs - TL865 Changlin
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 60 t
- Standard tyres
- 14.00-24
- Dump capacity
- 26 m³
- Net load
- 15 t
- Transport length
- 8.5 m
- Transport width
- 3.2 m
- Transport height
- 3.7 m
- Travel speed
- 45 km/h
- Turning radius outside
- 10.2 m
- Model series
- TL
- Engine manuf.
- Weichai
- Engine type
- WD12.420
- Engine power
- 309 kW
More technical details, like: steering, loading height, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
Download datasheets (PDF)
Changlin TL865 FAQ
How much does the Changlin TL865 rigid dump truck weigh?
What are the transport dimensions of the Changlin TL865 rigid dump truck?
What is the travel speed of the Changlin TL865 rigid dump truck?
What are the standard tyre specifications of the Changlin TL865 rigid dump truck?
What is the outside turning radius of the Changlin TL865 rigid dump truck?
What is the material handling capacity of the Changlin TL865 rigid dump truck?
How much is a Changlin TL865 Rigid dump truck (2017u20132025) worth?
Machine inspection
Ask for inspection of your Changlin TL865 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Changlin TL865 with similar Rigid Dump Trucks
.png)

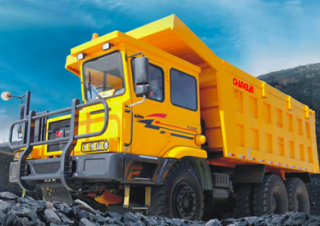

Changlin TL865
