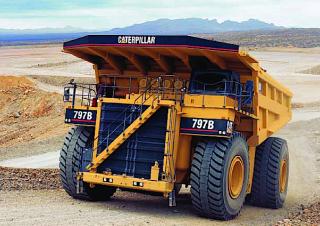

797B Caterpillar 797B Specifications & Technical Data (2003—2026)
Technical specs - 797B Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 624 t
- Standard tyres
- 59/50-R63
- Dump capacity
- 267 m³
- Net load
- 345 t
- Transport length
- 14.53 m
- Transport width
- 9.76 m
- Transport height
- 7.58 m
- Travel speed
- 67.6 km/h
- Turning radius outside
- 39.9 m
- Loading height
- 7.08 m
- Engine manuf.
- Caterpillar
- Engine type
- 3524B EUI
- Engine power
- 2648 kW
- Displacement
- 117.1 l
- No. of cylinders
- 24
- Cylinder bore x stroke
- 170x215 mm
- Emission level
- Tier 1
More technical details, like: steering, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
