793C Caterpillar 793C Specifications & Technical Data (1996—2026)

Weight: 376.5t – Standard tyres: 40.00-R57 – Dump capacity: 129m³ – Net load: 218t – Transport length: 12.87m – Transport width: 7.41m

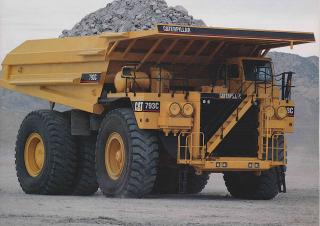

Rigid Dump Trucks Caterpillar 793C

Technical specs - 793C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
376.5 t
Standard tyres
40.00-R57
Dump capacity
129 m³
Net load
218 t
Transport length
12.87 m
Transport width
7.41 m
Transport height
6.43 m
Travel speed
54.3 km/h
Turning radius outside
28.4 m
Loading height
5.87 m
Engine manuf.
Caterpillar
Engine type
3516B
Engine power
1715 kW
Displacement
69 l
No. of cylinders
16
Cylinder bore x stroke
170x190 mm

More technical details, like: steering, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar 793C FAQ

When was the Caterpillar 793C manufactured?

The Caterpillar 793C was first produced in 1996.

How much does the Caterpillar 793C rigid dump truck weigh?

The Caterpillar 793C rigid dump truck weighs 376.5 tons.

What are the transport dimensions of the Caterpillar 793C rigid dump truck?

The Caterpillar 793C has a transport length of 12.87 meters, a transport width of 7.41 meters, and a transport height of 6.43 meters.

What is the travel speed of the Caterpillar 793C rigid dump truck?

The Caterpillar 793C has a travel speed of 54.3 km/h.

What are the undercarriage tyre specifications of the Caterpillar 793C rigid dump truck?

The Caterpillar 793C rigid dump truck is equipped with standard tyres sized 40.00-R57.

What is the turning radius of the Caterpillar 793C rigid dump truck?

The Caterpillar 793C has an outside turning radius of 28.4 meters.

What is the material handling capacity of the Caterpillar 793C rigid dump truck?

The Caterpillar 793C has a net load capacity of 218 tons, a dump capacity of 129 cubic meters, and a loading height of 5.87 meters.
