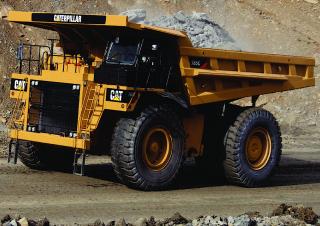

785C Caterpillar 785C Specifications & Technical Data (2002—2026)
Technical specs - 785C Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 102 t
- Standard tyres
- 33.00-R51 (E4)
- Dump capacity
- 91 m³
- Net load
- 136 t
- Transport length
- 11.02 m
- Transport width
- 6.64 m
- Transport height
- 5.77 m
- Travel speed
- 54.8 km/h
- Turning radius outside
- 27.5 m
- Loading height
- 4.97 m
- Engine manuf.
- Caterpillar
- Engine type
- 3512B EUI
- Engine power
- 1082 kW
- Displacement
- 51.8 l
- No. of cylinders
- 16
- Cylinder bore x stroke
- 170x190 mm
- Emission level
- Tier 1
More technical details, like: steering, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
