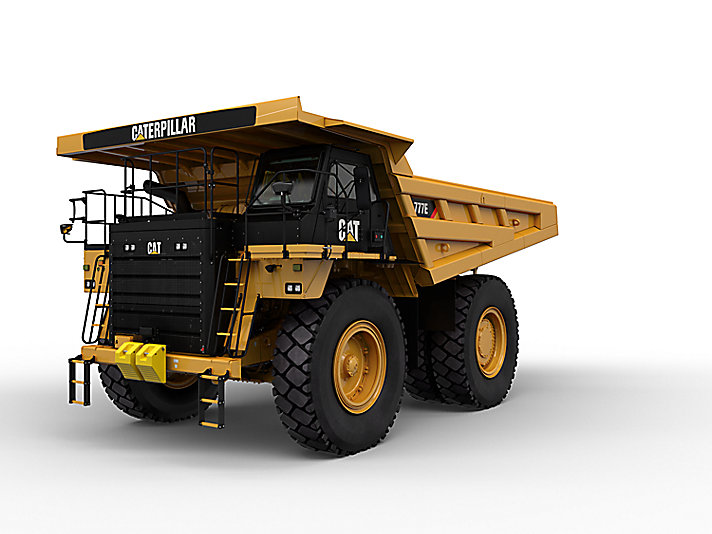

777E Caterpillar 777E Specifications & Technical Data (2016—2026)
Technical specs - 777E Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 65.16 t
- Standard tyres
- 27.00 R 49
- Dump capacity
- 64.1 m³
- Net load
- 98.2 t
- Steering
- VL
- Transport length
- 10.004 m
- Transport width
- 6.1 m
- Transport height
- 5.18 m
- Travel speed
- 65.9 km/h
- Turning radius outside
- 28.4 m
- Loading height
- 4.38 m
- Engine manuf.
- Caterpillar
- Engine type
- C32 Acert
- Engine power
- 749 kW
- Displacement
- 32.1 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 4757 Nm
- No. of cylinders
- 12
- Cylinder bore x stroke
- 145x162 mm
- Emission level
- Tier 2
More technical details, like: model series, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
