776 Caterpillar 776 Specifications & Technical Data (1974—2026)

Weight: 88.3t – Standard tyres: 24.00-35/24.00-35/24.00-49 – Dump capacity: 153m³ – Net load: 136t – Transport length: 23.32m – Transport width: 5.49m

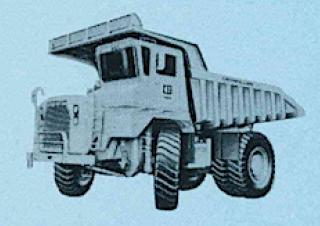

Rigid Dump Trucks Caterpillar 776

Technical specs - 776 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
88.3 t
Standard tyres
24.00-35/24.00-35/24.00-49
Dump capacity
153 m³
Net load
136 t
Transport length
23.32 m
Transport width
5.49 m
Transport height
4.55 m
Turning radius outside
26.95 m
Loading height
4.29 m

More technical details, like: steering, travel speed, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 776 FAQ

When was the Caterpillar 776 manufactured?

The Caterpillar 776 was first produced in 1974.

How much does the Caterpillar 776 rigid dump truck weigh?

The Caterpillar 776 rigid dump truck weighs 88.3 tons.

What are the transport dimensions of the Caterpillar 776 rigid dump truck?

The Caterpillar 776 has a transport length of 23.32 meters, a transport width of 5.49 meters, and a transport height of 4.55 meters.

What are the standard tyres specifications for the Caterpillar 776 rigid dump truck?

The Caterpillar 776 rigid dump truck comes equipped with standard tyres sized 24.00-35/24.00-35/24.00-49.

What is the turning radius of the Caterpillar 776 rigid dump truck?

The Caterpillar 776 has an outside turning radius of 26.95 meters.

What is the material handling capacity of the Caterpillar 776 rigid dump truck?

The Caterpillar 776 rigid dump truck has a net load capacity of 136 tons, a dump capacity of 153 cubic meters, and a loading height of 4.29 meters.

How much is a Caterpillar 776 Rigid dump truck (1974u20132025) worth?

The residual value of the Caterpillar 776 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
