BH150E Beml BH150E Specifications & Technical Data (2017—2026)

Weight: 104t – Standard tyres: 33.00 R51 – Dump capacity: 82m³ – Net load: 136t – Transport length: 12.155m – Transport width: 7.707m

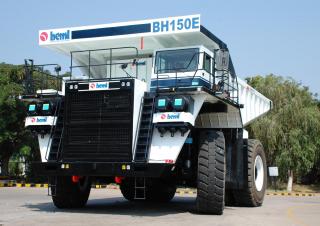

Rigid Dump Trucks Beml BH150E

Technical specs - BH150E Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
104 t
Standard tyres
33.00 R51
Dump capacity
82 m³
Net load
136 t
Transport length
12.155 m
Transport width
7.707 m
Transport height
6.526 m
Travel speed
64 km/h
Turning radius outside
13.35 m
Loading height
5.4 m
Engine manuf.
Cummins
Engine type
QSK50C
Engine power
1398 kW
Displacement
50.3 l
Revolutions at max torque
1500 rpm
Max. torque
7871 Nm
No. of cylinders
16
Cylinder bore x stroke
159x159 mm
Emission level
Tier II

More technical details, like: steering, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download datasheets (PDF)

Beml BH150E FAQ

When was the Beml BH150E manufactured?

The Beml BH150E was first produced in 2017.

How much does the Beml BH150E rigid dump truck weigh?

The Beml BH150E rigid dump truck weighs 104 tons.

What are the transport dimensions of the Beml BH150E rigid dump truck?

The Beml BH150E has a transport length of 12.16 meters, a transport width of 7.71 meters, and a transport height of 6.53 meters.

What is the travel speed of the Beml BH150E rigid dump truck?

The Beml BH150E has a travel speed of 64 km/h.

What is the standard tyre size of the Beml BH150E rigid dump truck?

The Beml BH150E is equipped with standard tyres sized 33.00 R51.

What is the turning radius of the Beml BH150E rigid dump truck?

The Beml BH150E has an outside turning radius of 13.35 meters.

What is the material handling capacity of the Beml BH150E rigid dump truck?

The Beml BH150E has a net load capacity of 136 tons, a dump capacity of 82 cubic meters, and a loading height of 5.4 meters.
