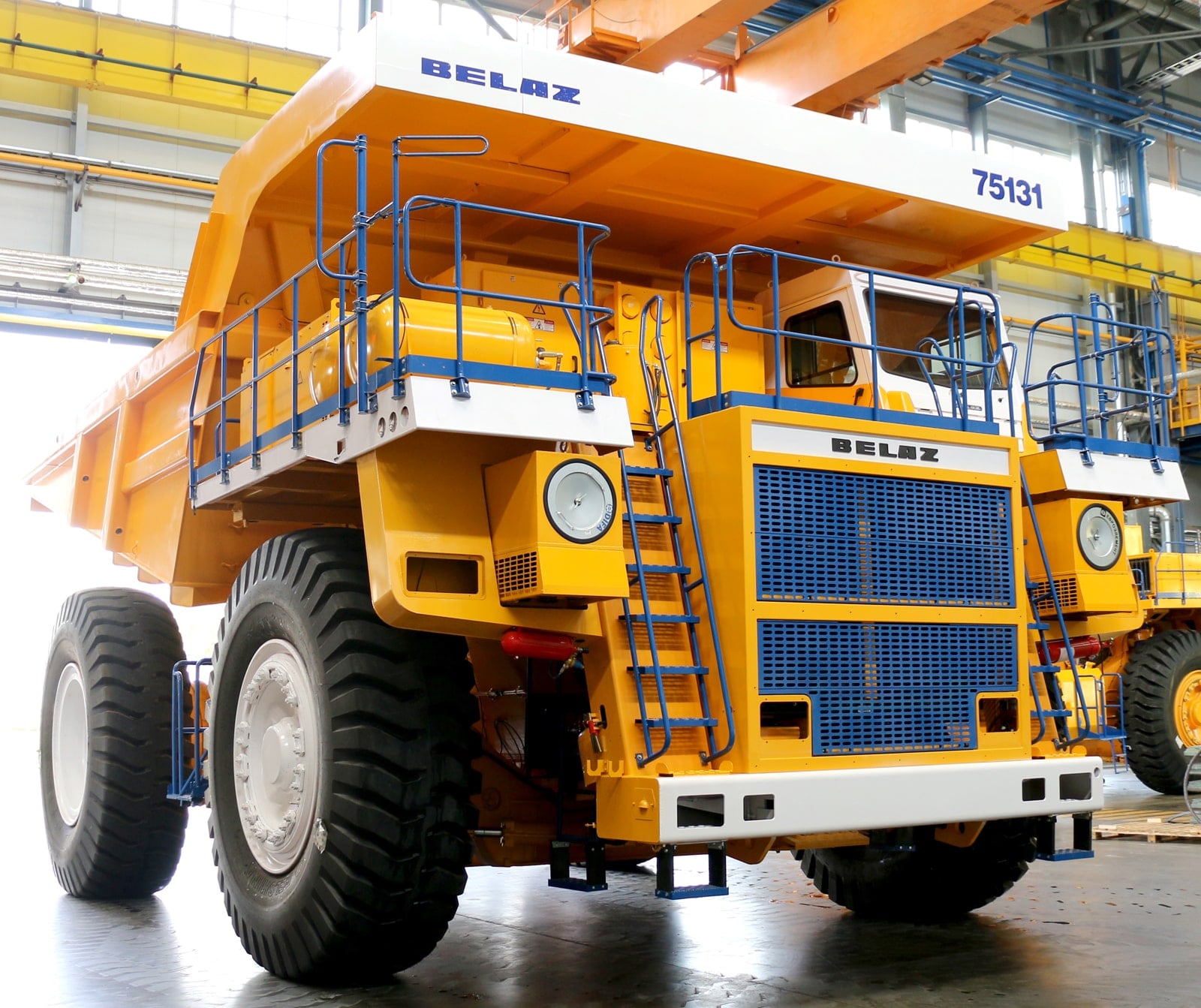

7513A Belaz 7513A Specifications & Technical Data (2020—2026)
Technical specs - 7513A Belaz
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 110.4 t
- Standard tyres
- 33.00R51
- Dump capacity
- 71.2 m³
- Net load
- 130 t
- Steering
- VL
- Transport length
- 11.5 m
- Transport width
- 7 m
- Transport height
- 5.9 m
- Travel speed
- 64 km/h
- Turning radius outside
- 13 m
- Loading height
- 4.8 m
- Model series
- 7513
- Engine manuf.
- MTU
- Engine type
- 12V4000
- Engine power
- 1193 kW
- Displacement
- 48.8 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 7612 Nm
- No. of cylinders
- 12
- Cylinder bore x stroke
- 165x190 mm
More technical details, like: dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
