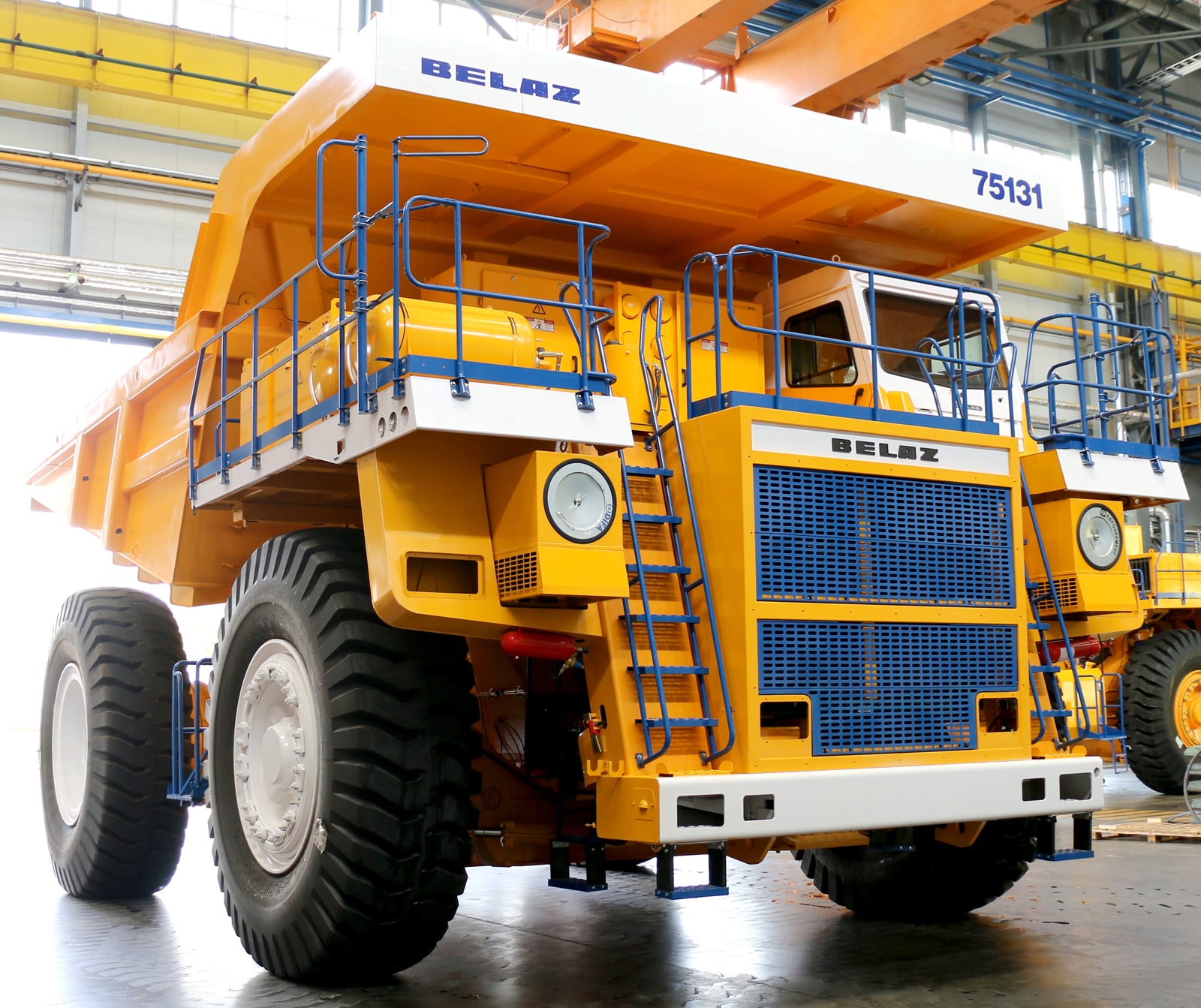

Belaz 7513 Specifications & Technical Data (2020-2023)

Rate this machine now!

Weight: 109.5t – Standard tyres: 33.00R51 – Dump capacity: 71.2m³ – Net load: 130t – Steering: VL – Transport length: 11.5m

Technical specs - 7513 Belaz


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 109.5 t
  • Standard tyres 33.00R51
  • Dump capacity 71.2 m³
  • Net load 130 t
  • Steering VL
  • Transport length 11.5 m
  • Transport width 7 m
  • Transport height 5.9 m
  • Travel speed 64 km/h
  • Turning radius outside 13 m
  • Loading height 4.8 m
  • Model series 7513
  • Engine manuf. Cummins
  • Engine type QSK 45-C
  • Engine power 1194 kW
  • Displacement 45 l
  • Revolutions at max torque 1300 rpm
  • Max. torque 6836 Nm
  • No. of cylinders 12
  • Cylinder bore x stroke 159x190 mm
  • Emission level Tier 2

More technical details, like: average fuel consumption, fuel consumption range (min - max), dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and std. trough

Special equipment

  • Diesel particulate filter
  • Central lubrication
  • Heated dump body
  • Tailgate
  • Aircondition
