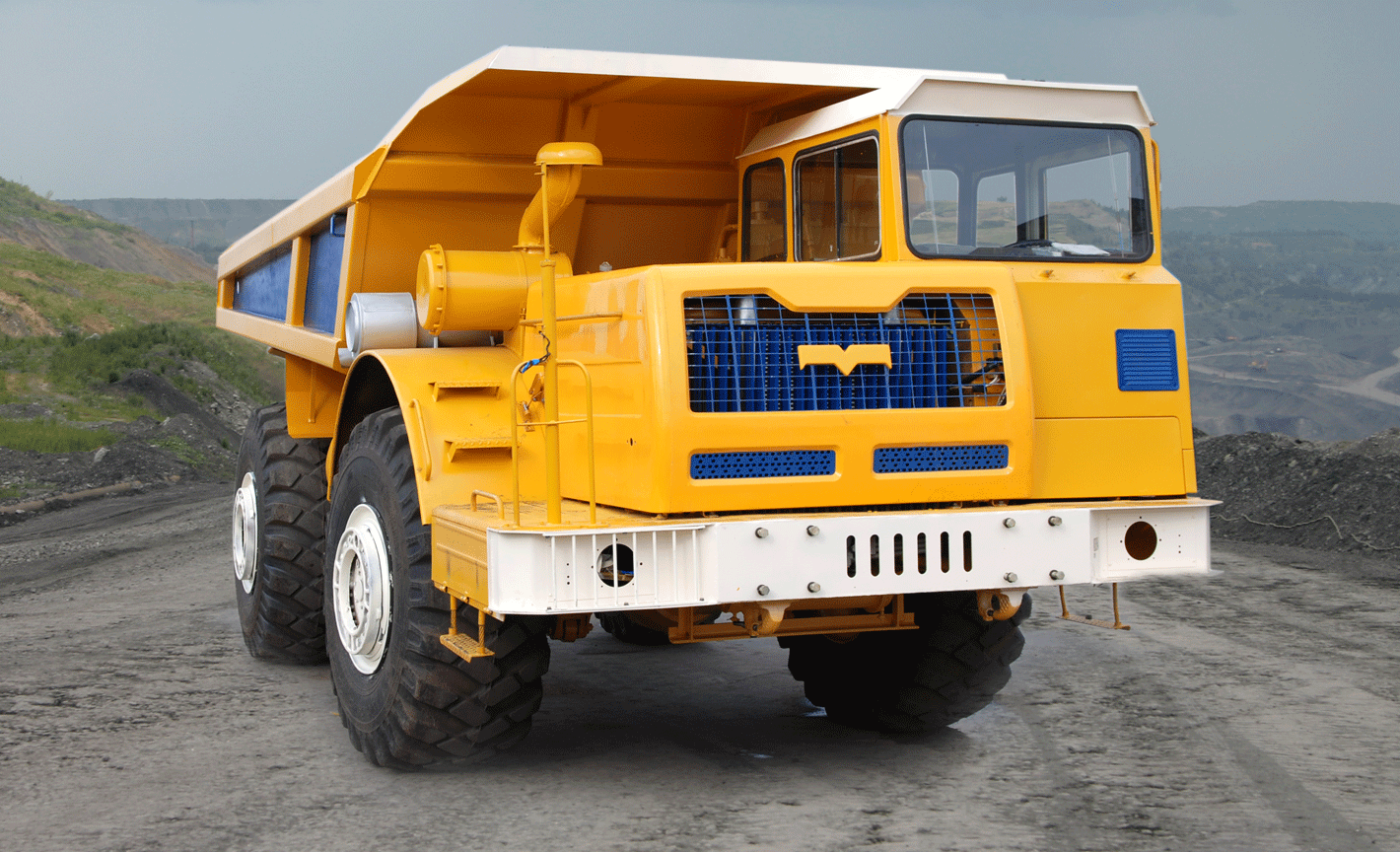

75054 Belaz 75054 Specifications & Technical Data (2020—2026)
Technical specs - 75054 Belaz
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20 t
- Standard tyres
- 26.5-25
- Dump capacity
- 15.5 m³
- Net load
- 25 t
- Steering
- VL
- Transport length
- 7.65 m
- Transport width
- 3.63 m
- Transport height
- 3.4 m
- Travel speed
- 50 km/h
- Turning radius outside
- 11.5 m
- Loading height
- 3.1 m
- Model series
- 7505
- Engine manuf.
- Yamz
- Engine type
- 7512.10
- Engine power
- 264 kW
- Displacement
- 14.86 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 1570 Nm
- No. of cylinders
- 8
- Cylinder bore x stroke
- 132x140 mm
More technical details, like: dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. trough
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
