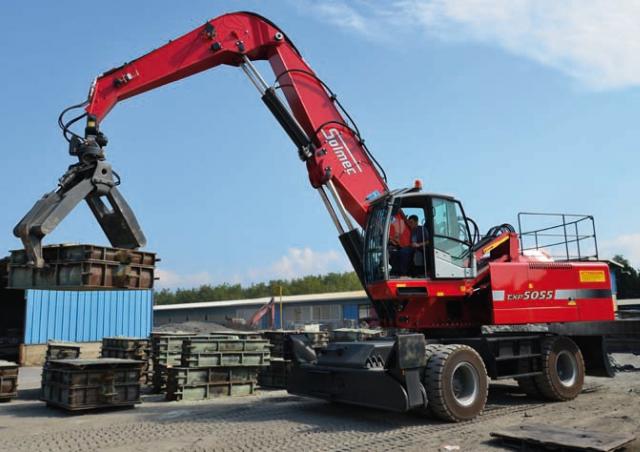

EXP 5055 Solmec EXP 5055 Specifications & Technical Data (2022—2025)
Technical specs - EXP 5055 Solmec
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 56 t
- Standard tyres
- 14.00 x 24
- Boom
- UA
- Outrigger stabilisers
- 4 2/4-fold
- Transport length
- 11.57 m
- Transport height
- 3.864 m
- Transport width
- 3.5 m
- Max. Reach horizontal
- 19.2 m
- Travel speed
- 18 km/h
- Engine manuf.
- Deutz
- Engine type
- CD 7.8 L6
- Engine power
- 220 kW
- Displacement
- 7.8 l
- Revolutions at max torque
- 1450 rpm
- Max. torque
- 1260 Nm
- No. of cylinders
- 6
- Emission level
- Tier 4F
More technical details, like: dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, track width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
