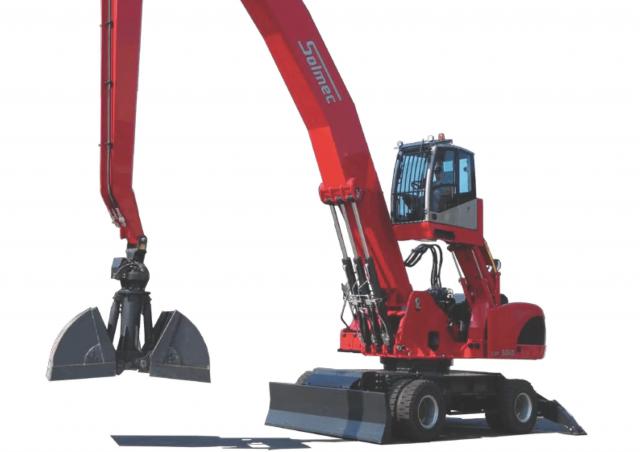

EXP 5030 Solmec EXP 5030 Specifications & Technical Data (2022—2026)
Technical specs - EXP 5030 Solmec
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 32.3 t
- Standard tyres
- 10.00 x 20 (12.00 x 20)/10.00 x 20 - 16 PR (12.00 x 20 - 20 PR)
- Boom
- UA
- Outrigger stabilisers
- 2 2/4-fold
- Transport length
- 9.45 m
- Transport height
- 3.56 m
- Transport width
- 3 m
- Max. Reach horizontal
- 11.8 m
- Dredging depth
- 3.5 m
- Tear-out force
- 47.6 kN
- Travel speed
- 18 km/h
- Engine manuf.
- Deutz
- Engine type
- TCD 6.1 L6 4V
- Engine power
- 160 kW
- Displacement
- 6.06 l
- Revolutions at max torque
- 1450 rpm
- Max. torque
- 900 Nm
- No. of cylinders
- 6
- Emission level
- Stage V/Tier 5
More technical details, like: dipper length, turning radius inside, turning radius outside, track width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
