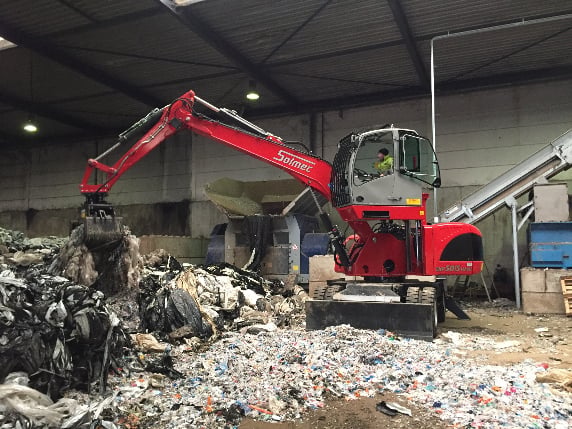

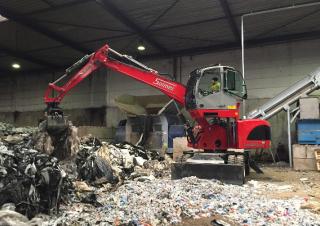

EXP 5015 WW Solmec EXP 5015 WW Specifications & Technical Data (2022—2026)
Technical specs - EXP 5015 WW Solmec
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 16.5 t
- Standard tyres
- 9.00x20
- Boom
- UA
- Outrigger stabilisers
- 2 2/4-fold
- Transport length
- 7.9 m
- Transport height
- 3.295 m
- Transport width
- 2.55 m
- Max. Reach horizontal
- 8.3 m
- Dredging depth
- 3.5 m
- Engine manuf.
- N/A
- Engine type
- N/A
- Engine power
- 55 kW
- Revolutions at max torque
- 1480 rpm
- Emission level
- EU 4
More technical details, like: tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, track width, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Download datasheets (PDF)
