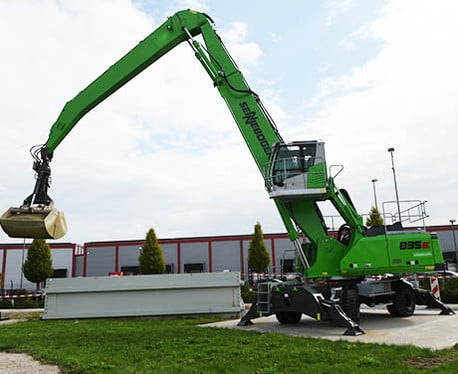

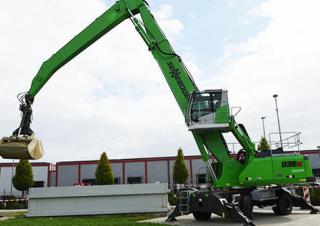

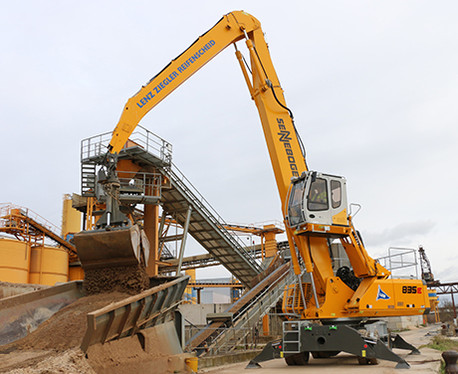

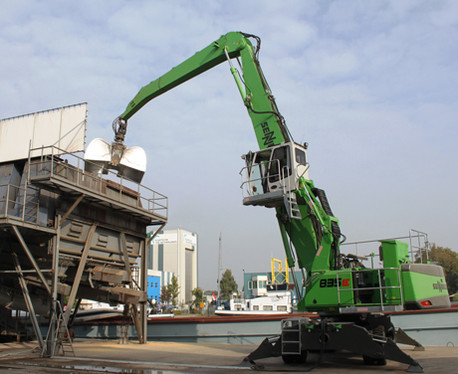

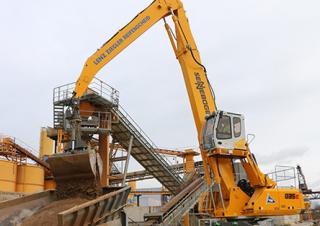

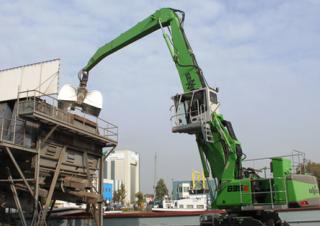

835M E Sennebogen 835M E Specifications & Technical Data (2018—2021)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Sennebogen live at
.jpg){kind=logo}
Technical specs - 835M E Sennebogen
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 45.5 t
- Standard tyres
- 12.00-20
- Boom
- UA
- Outrigger stabilisers
- 2/4 2/4-fold
- Transport length
- 15 m
- Transport height
- 3.45 m
- Transport width
- 3 m
- Max. Reach horizontal
- 18 m
- Travel speed
- 20 km/h
- Model series
- M
- Engine manuf.
- Cummins
- Engine type
- QSL 9-C300
- Engine power
- 224 kW
- Emission level
- Tier IVf
More technical details, like: dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, track width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Download datasheets (PDF)
