    Lectura specs Construction machinery Material Handlers Material Handlers Sennebogen Sennebogen 825M E specifications

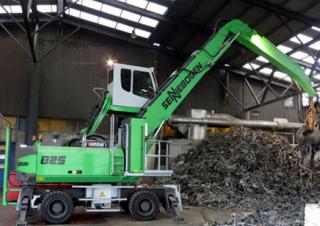

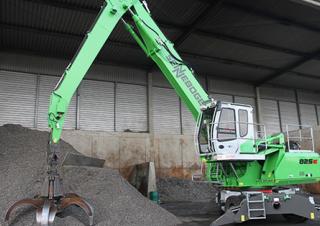

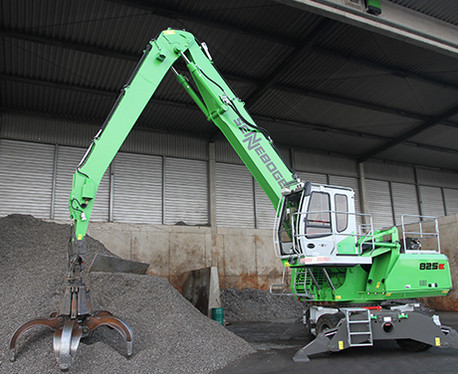

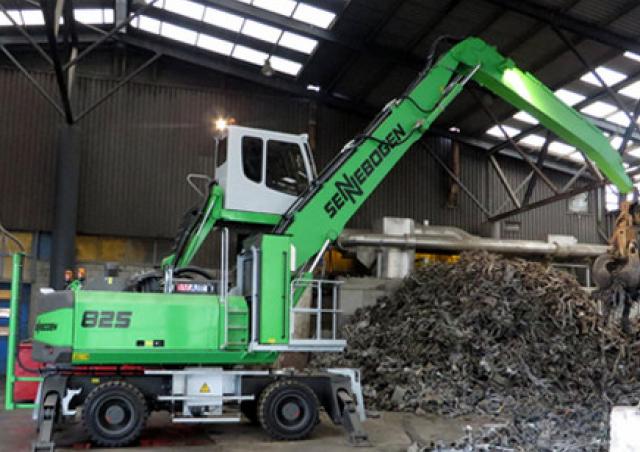

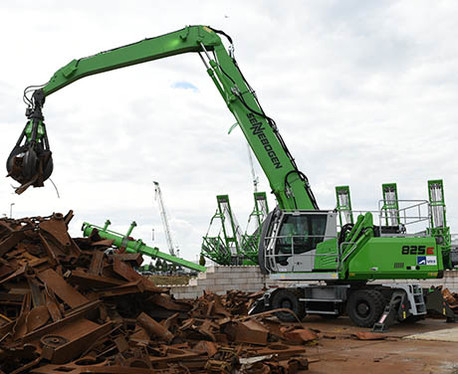

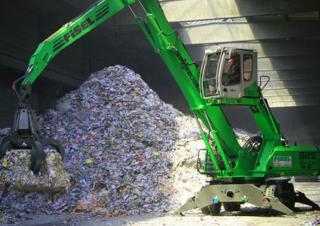

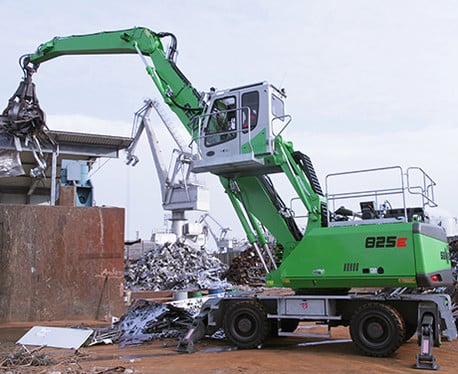

    Sennebogen 825M E Specifications & Technical Data (2018-2023)

    Rate this machine now!

    Weight: 28.8t – Standard tyres: 10.00-20 – Boom: UA – Outrigger stabilisers: 2/42/4-fold – Transport length: 12.05m – Transport height: 3.245m

    Technical specs - 825M E Sennebogen


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 28.8 t
    • Standard tyres 10.00-20
    • Boom UA
    • Outrigger stabilisers 2/4 2/4-fold
    • Transport length 12.05 m
    • Transport height 3.245 m
    • Transport width 2.57 m
    • Max. Reach horizontal 14 m
    • Travel speed 20 km/h
    • Engine manuf. Cummins
    • Engine type 6.7
    • Engine power 129 kW
    • Emission level Stage V

    More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, bucket capacity, track width, dimension lxwxh, displacement...
