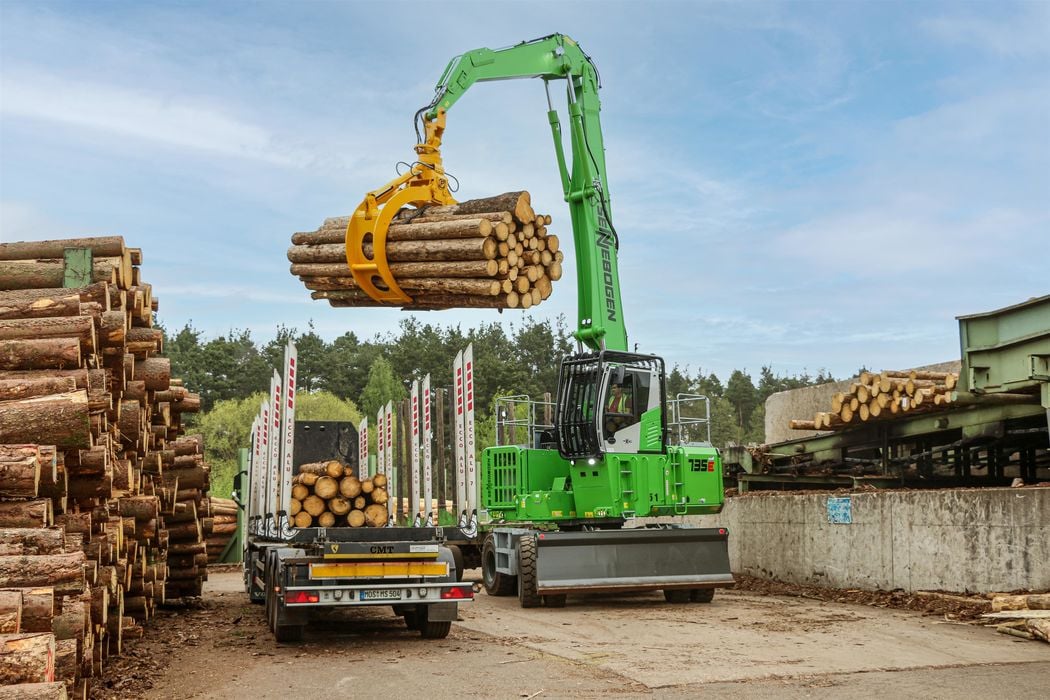

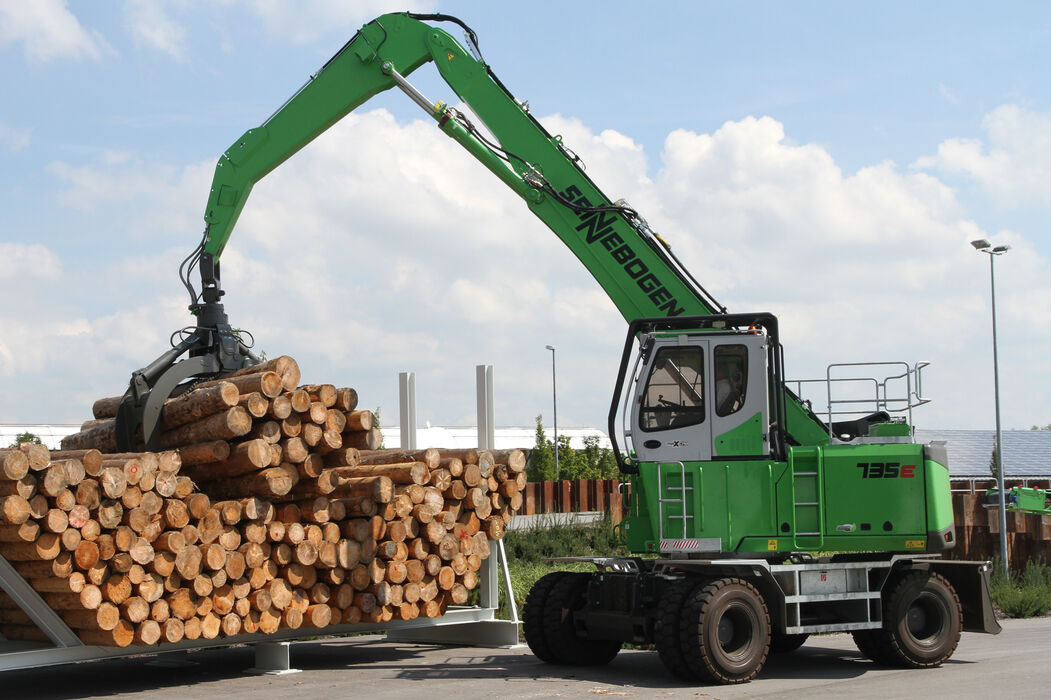

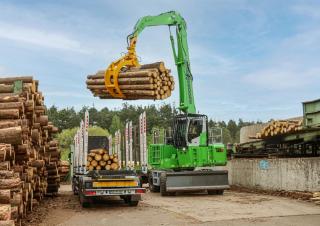

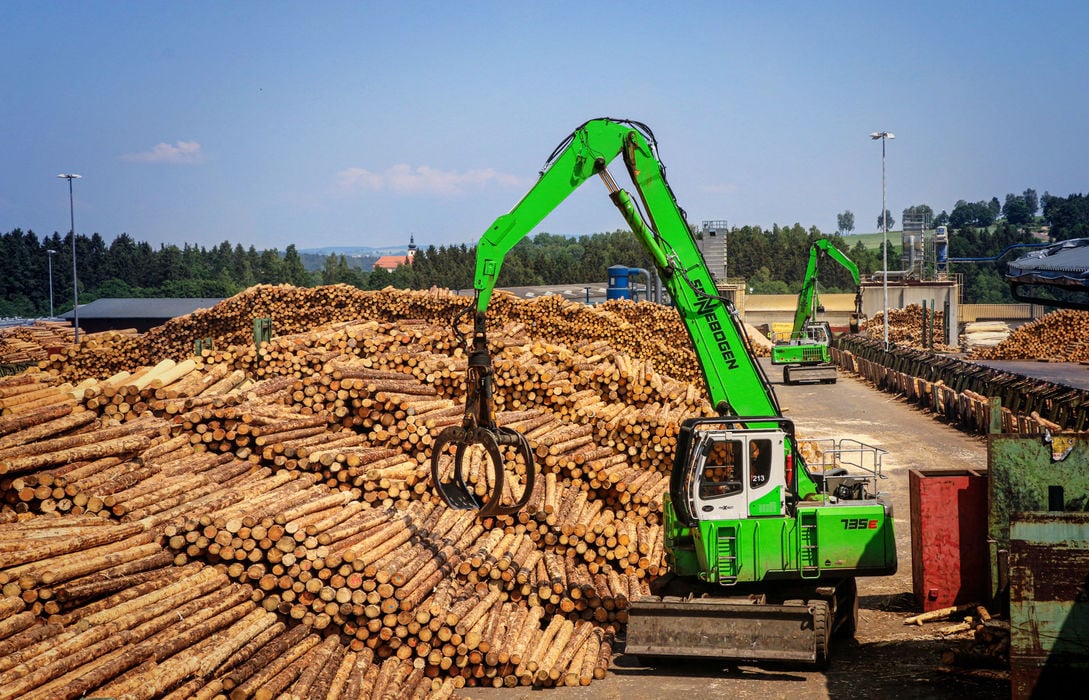

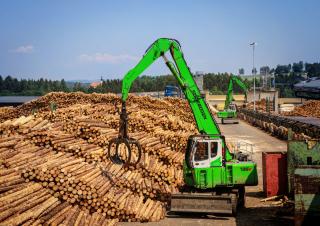

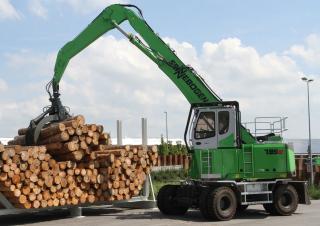

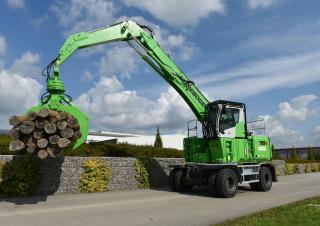

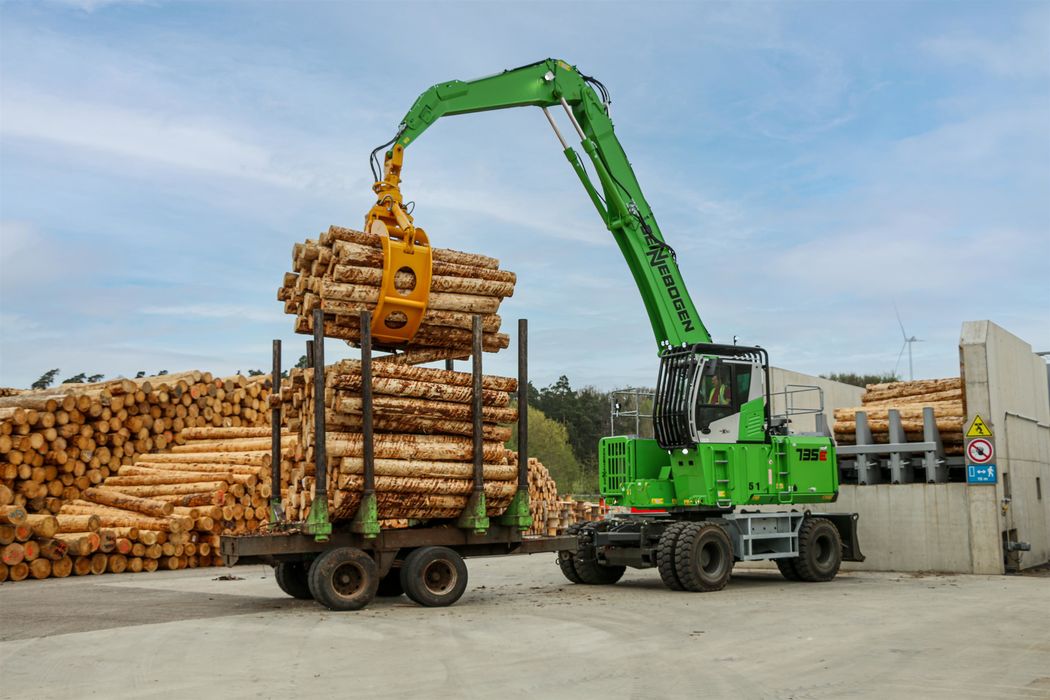

735M E Sennebogen 735M E Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
.jpg)
.jpeg)
.jpg)
.jpg)
.jpg)
.jpeg)
Visit Sennebogen live at
.jpg){kind=logo}
Technical specs - 735M E Sennebogen
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 43.9 t
- Standard tyres
- 8x14.00-24
- Boom
- UA
- Transport length
- 10.85 m
- Transport height
- 3.62 m
- Transport width
- 3.68 m
- Max. Reach horizontal
- 11 m
- Turning radius inside
- 2.7 m
- Turning radius outside
- 5.8 m
- Travel speed
- 20 km/h
- Model series
- E
- Engine manuf.
- Cummins
- Engine type
- L9
- Engine power
- 194 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 6
- Emission level
- V
More technical details, like: outrigger stabilisers, dredging depth, tear-out force, dipper length, track width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
