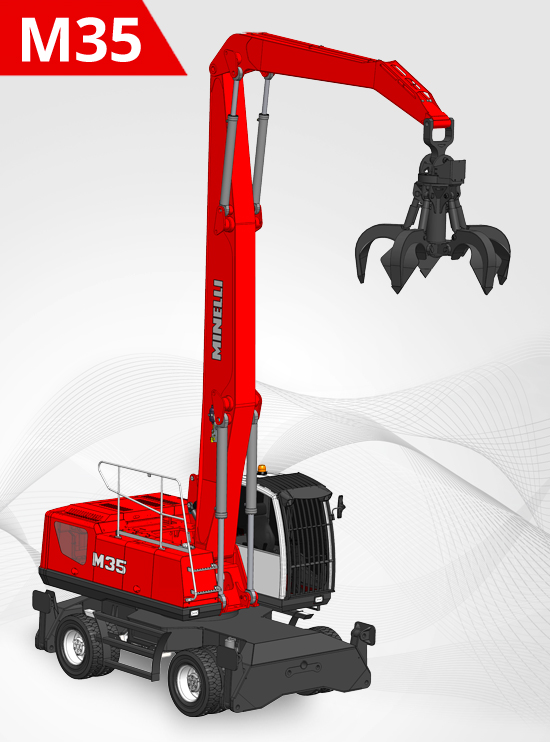

M35 Minelli M35 Specifications & Technical Data (2023—2026)

Weight: 35t – Standard tyres: 10.00x20” – Outrigger stabilisers: 42/4-fold – Transport length: 10.9m – Transport height: 3.37m – Transport width: 2.95m

Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35
Material Handlers Minelli M35

Technical specs - M35 Minelli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35 t
Standard tyres
10.00x20”
Outrigger stabilisers
4 2/4-fold
Transport length
10.9 m
Transport height
3.37 m
Transport width
2.95 m

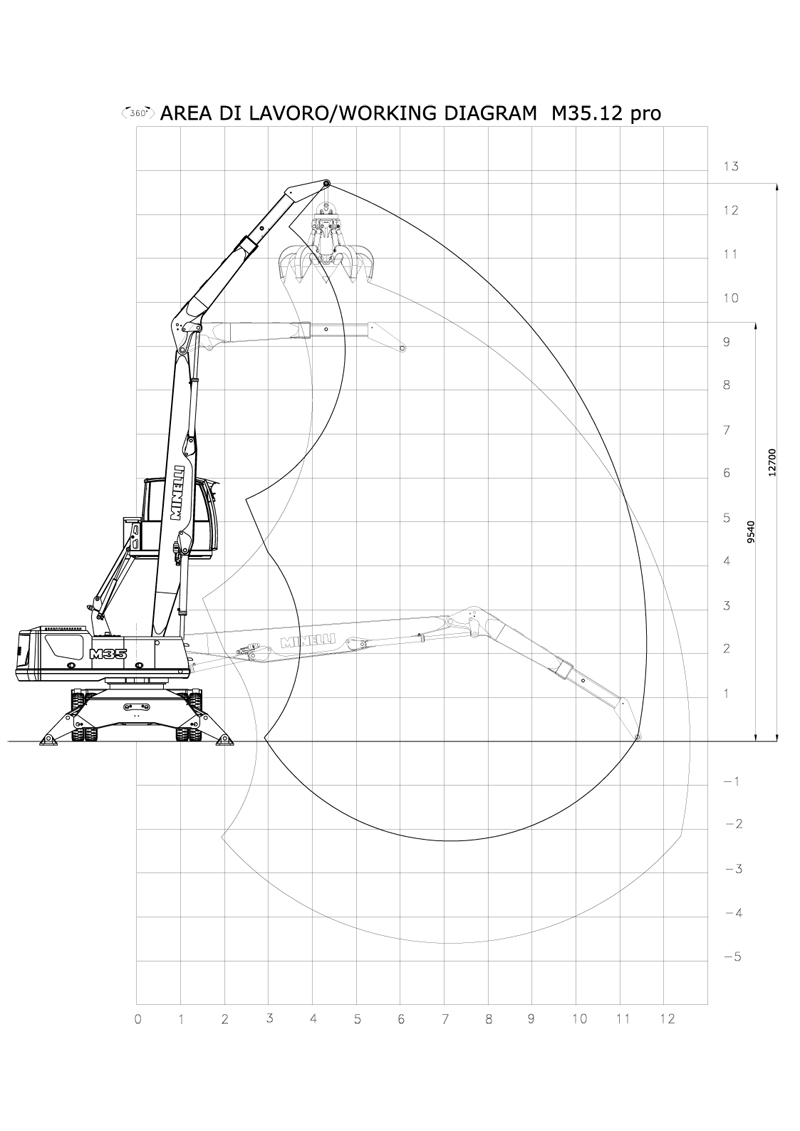

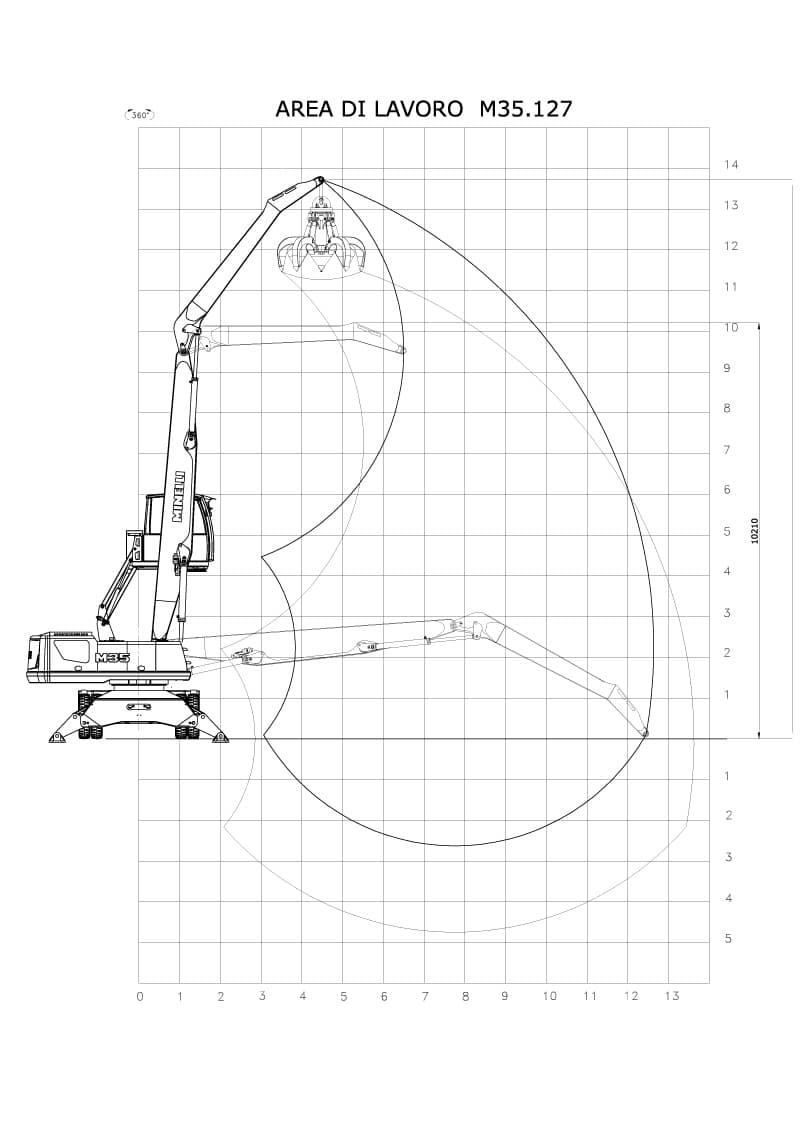

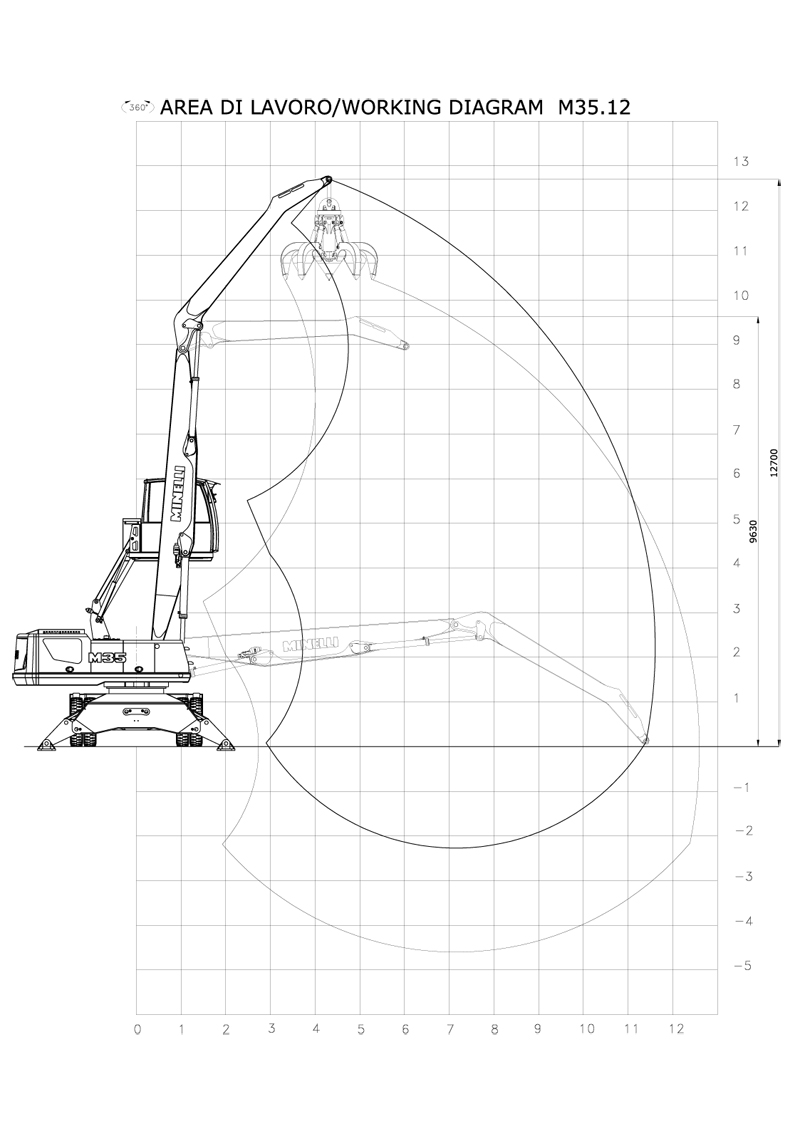

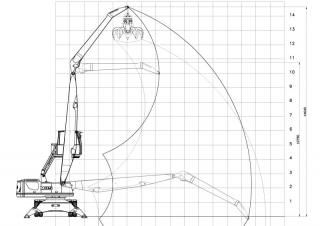

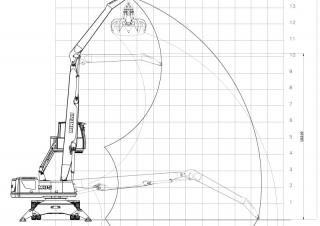

Max. Reach horizontal
12.7 m
Travel speed
12 km/h
Model series
M
Engine manuf.
Perkins
Engine type
1206J-E70TA
Engine power
151 kW
Displacement
7 l
Revolutions at max torque
1500 rpm
Max. torque
870 Nm
No. of cylinders
6
Emission level
EU Stage V

More technical details, like: boom, dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, track width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
