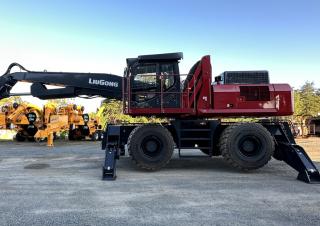

MH-60 Liugong MH-60 Specifications & Technical Data (2023—2026)

Weight: 54.2t – Standard tyres: 12.00-24/8.50 – Outrigger stabilisers: 42/4-fold – Transport length: 14.55m – Transport height: 4.27m – Transport width: 3.68m

Material Handlers Liugong MH-60

Visit Liugong live at

Technical specs - MH-60 Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
54.2 t
Standard tyres
12.00-24/8.50
Outrigger stabilisers
4 2/4-fold
Transport length
14.55 m
Transport height
4.27 m
Transport width
3.68 m
Max. Reach horizontal
18.3 m
Travel speed
23 km/h
Model series
MH
Engine manuf.
Cummins
Engine type
X12
Engine power
298 kW
Displacement
11.8 l
Revolutions at max torque
1500 rpm
Max. torque
2034 Nm
No. of cylinders
6
Cylinder bore x stroke
132x144 mm
Emission level
EPA Tier 4 Final

More technical details, like: boom, dredging depth, tear-out force, dipper length, turning radius inside, turning radius outside, track width, dimension lxwxh are available in the full technical specs.
