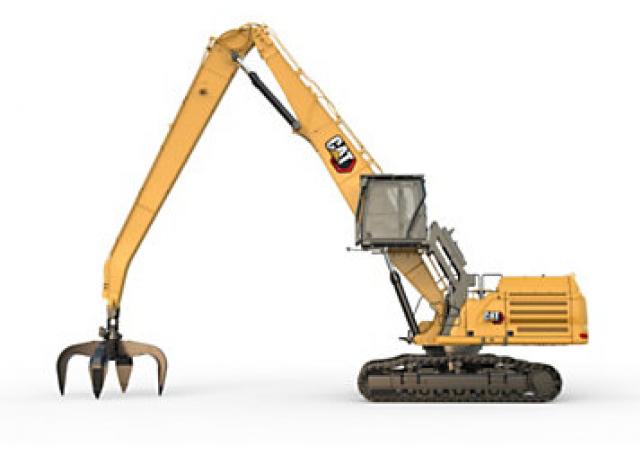

MH3260 Caterpillar MH3260 Specifications & Technical Data (2022—2026)
Technical specs - MH3260 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 60.42 t
- Boom
- MB
- Transport length
- 14.01 m
- Transport height
- 3.58 m
- Transport width
- 4.51 m
- Max. Reach horizontal
- 18 m
- Dredging depth
- 10.8 m
- Tear-out force
- 239 kN
- Turning radius inside
- 3.76 m
- Travel speed
- 4.8 km/h
- Track width
- 750 mm
- Engine manuf.
- Caterpillar
- Engine type
- C13
- Engine power
- 425 kW
- Displacement
- 12.5 l
- Revolutions at max torque
- 1800 rpm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 130 x 157 mm
- Emission level
- Stage V/Tier 4F
More technical details, like: standard tyres, outrigger stabilisers, dipper length, turning radius outside, model series, dimension lxwxh, max. torque are available in the full technical specs.
