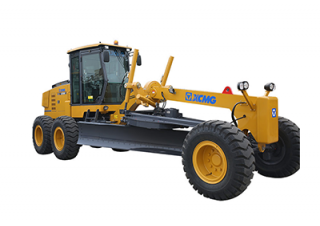

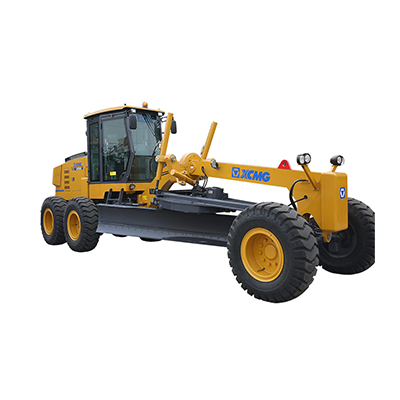

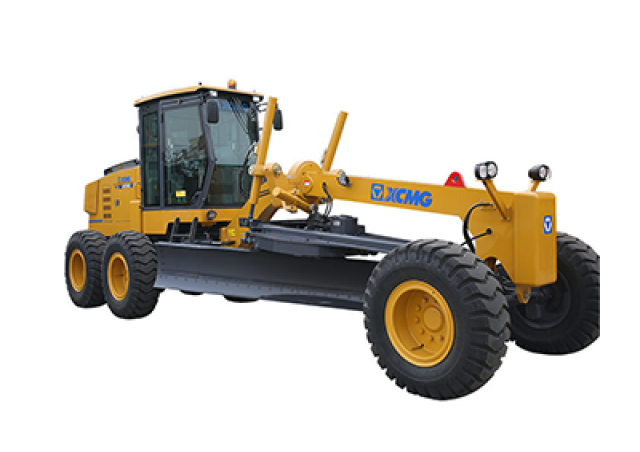

GR2003 XCMG GR2003 Specifications & Technical Data (2026—2026)

Weight: 16t – Standard tyres: 17.5-25 – Transport length: 8.9m – Transport width: 2.625m – Transport height: 3.42m – Mouldboard width: 4.27m

Graders XCMG GR2003

Visit XCMG live at

Technical specs - GR2003 XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Standard tyres
17.5-25
Transport length
8.9 m
Transport width
2.625 m
Transport height
3.42 m
Mouldboard width
4.27 m
Travel speed
38 km/h
Model series
GR
Engine manuf.
Shangchai
Engine type
SC9DK200.1G3
Engine power
147 kW
Revolutions at max torque
2200 rpm

More technical details, like: steering mode, drive, front blade width, turning radius outside, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
