    Lectura specs Construction machinery Graders Graders XCMG XCMG GR135 specifications

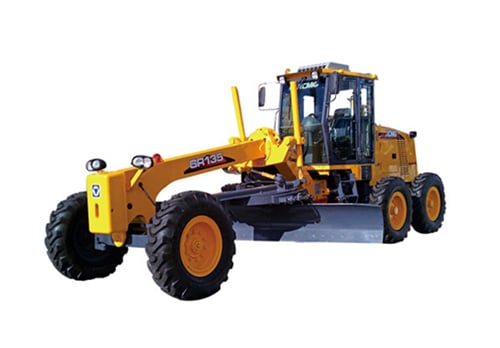

    XCMG GR135 Specifications & Technical Data (2017-2022)

    Rate this machine now!

    Weight: 11t – Drive: A – Transport length: 8.015m – Transport width: 2.38m – Transport height: 3.05m – Mouldboard width: 3.71m

    Technical specs - GR135 XCMG


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 11 t
    • Drive A
    • Transport length 8.015 m
    • Transport width 2.38 m
    • Transport height 3.05 m
    • Mouldboard width 3.71 m
    • Travel speed 42 km/h
    • Turning radius outside 6.6 m
    • Engine manuf. Kohler
    • Engine type KDI 2504
    • Engine power 48 kW
    • Max. torque 305/1500 Nm
    • No. of cylinders 4
    • Emission level V

    More technical details, like: standard tyres, steering mode, front blade width, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

    Basic model with ROPS cabin and central blade

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Front blade
    • Rear ripper
    • Aircondition
