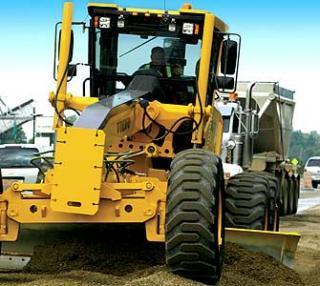

Volvo G970 Specifications & Technical Data (2006-2016)

Technical specs - G970 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.9 t

Standard tyres: 17.5-R25

Steering mode: VKL

Transport length: 10 m

Transport width: 2.8 m

Transport height: 3.23 m

Mouldboard width: 3.65 m

Front blade width: 2.75 m

Travel speed: 40 km/h

Turning radius outside: 7.7 m

Model series: G

More technical details, like: drive, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: Yes
Rear ripper: No
Aircondition: No

Download datasheets (PDF)

Volvo G970 FAQ

When was the Volvo G970 manufactured?

The Volvo G970 was manufactured from 2006 to 2016.

How much does the Volvo G970 grader weigh?

The Volvo G970 grader weighs 18.9 tons.

What are the transport dimensions of the Volvo G970 grader?

The Volvo G970 grader has a transport length of 10 meters, a transport width of 2.8 meters, and a transport height of 3.23 meters.

What is the travel speed of the Volvo G970 grader?

The Volvo G970 grader has a travel speed of 40 km/h.

What is the standard tyre size of the Volvo G970 grader?

The Volvo G970 grader has standard tyres sized 17.5-R25.

What are the maneuverability specifications of the Volvo G970 grader?

The Volvo G970 grader has a turning radius of 7.7 meters and features front and articulated-frame steering.

What are the primary work tool specifications of the Volvo G970 grader?

The Volvo G970 grader has a front blade width of 2.75 meters and a mouldboard width of 3.65 meters.

How much is a Volvo G970 Grader (2006u20132016) worth?

The residual value of the Volvo G970 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo G970 overview

Engine / powertrain

Circle drive

The Volvo dual gear Circle Drive System uses direct acting hydraulic power for exceptional turning and holding capability under full load. Circle Drive System uses two hardened drive pinions and is protected against impact damage by an overload relief valve as standard equipment.

Hydraulics

Implement hydraulics

Circuit type: Closed center, load sense Proportional Demand Flow (PDF) Hydraulic System, with O-ring face seal hose connections. Main implement pump type: Axial piston type. Maximum pressure: Bar (psi) 207 (3,000). Output: 2100 RPM lpm (gpm) 208 (55). Stand by pressure: Bar (psi) 24 (350). It features a large capacity, replaceable in-tank filter that filters both system and re-fill oil. Additionally, there are low level and high temperature operator warnings.

Frame

Front axle and articulation

Anti-drift lock valve ensures stable operation. Articulation lock standard. Hydrostatic power steering of front wheels incorporating two steering cylinders. Meets SAE J1511 FEB. 94, ISO 5010:1992 EN12643:1997 with optional secondary steering.

Components

Brakes

Service Brakes: Foot operated Fade resistant, hydraulically actuated, wet multiple disc service brakes located at the 4 tandem drive wheels are fully sealed and maintenance free. The system features crossover dual braking circuits for uniform braking on both sides of the grader. It includes reserve power assist and an operator warning system (visual and audible). Parking Brake: Spring applied hydraulically released enclosed wet multiple disc type parking brake in final drive. This brake is effective on all 4 tandem drive wheels, and the transmission cannot be engaged with the park brake on. The braking systems comply with SAE J/EN ISO 3450:1996. Volvo uses asbestos-free brake components.
