717H Sinomach 717H Specifications & Technical Data (2025—2026)

Weight: 14t – Standard tyres: 17.5-25-12PR L-3 – Transport length: 8.82m – Transport width: 2.6m – Transport height: 3.42m – Mouldboard width: 3.658m

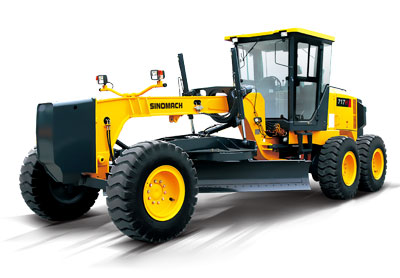

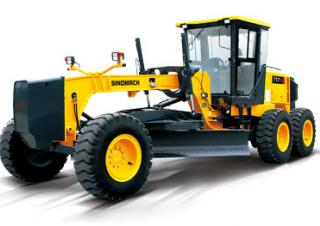

Graders Sinomach 717H

Technical specs - 717H Sinomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14 t
Standard tyres
17.5-25-12PR L-3
Transport length
8.82 m
Transport width
2.6 m
Transport height
3.42 m
Mouldboard width
3.658 m
Travel speed
49.2 km/h
Turning radius outside
7.3 m
Model series
H
Engine manuf.
Cummins
Engine type
6BTA5.9
Engine power
132 kW
Revolutions at max torque
1300 rpm
Max. torque
750 Nm

More technical details, like: steering mode, drive, front blade width, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
