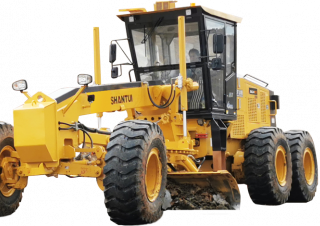

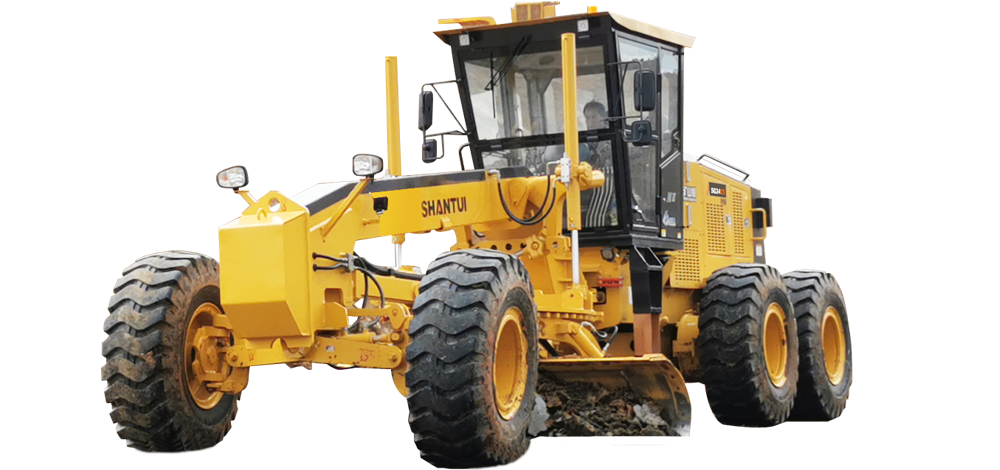

SG24-C5 Shantui SG24-C5 Specifications & Technical Data (2023—2026)
Technical specs - SG24-C5 Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 18.5 t
- Standard tyres
- 20.5-25PR16
- Transport length
- 9.445 m
- Transport width
- 2.79 m
- Transport height
- 3.56 m
- Mouldboard width
- 3.965 m
- Travel speed
- 46.9 km/h
- Engine manuf.
- Weichai
- Engine type
- WP7G240E301
- Engine power
- 176 kW
- Displacement
- 7.47 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 1100 Nm
- No. of cylinders
- 6
- Emission level
- China III
More technical details, like: steering mode, drive, front blade width, turning radius outside, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
No
- Aircondition
-
No
