SG17-B6 Shantui SG17-B6 Specifications & Technical Data (2025—2026)

Weight: 14.8t – Transport length: 8.953m – Transport width: 2.6m – Transport height: 3.358m – Mouldboard width: 3.66m – Travel speed: 42km/h

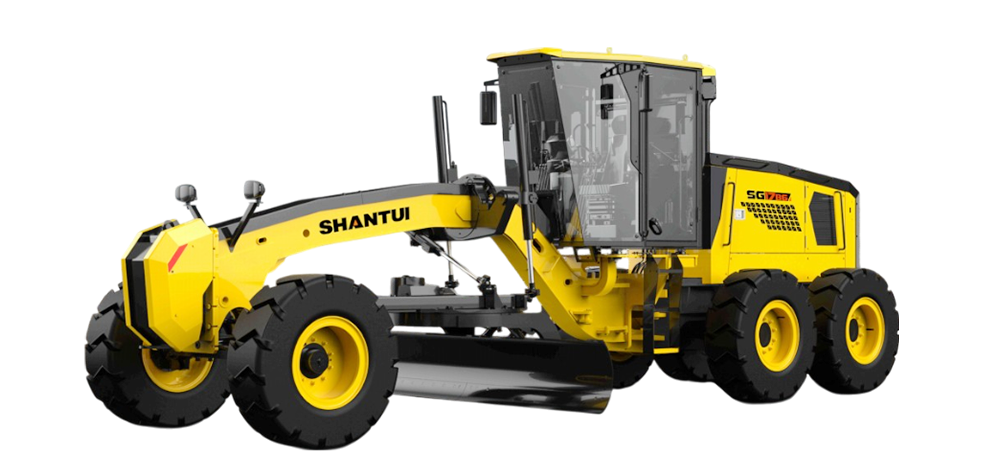

Graders Shantui SG17-B6

Technical specs - SG17-B6 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.8 t
Transport length
8.953 m
Transport width
2.6 m
Transport height
3.358 m
Mouldboard width
3.66 m
Travel speed
42 km/h
Engine manuf.
Weichai
Engine type
WP6G175E21
Engine power
129 kW
Emission level
China II

More technical details, like: standard tyres, steering mode, drive, front blade width, turning radius outside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No

Download datasheets (PDF)
