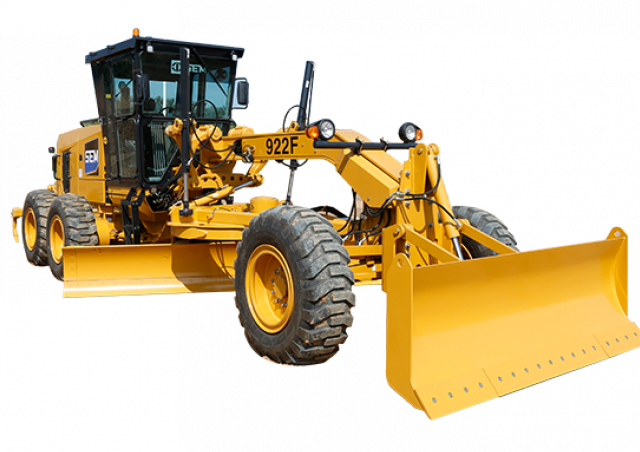

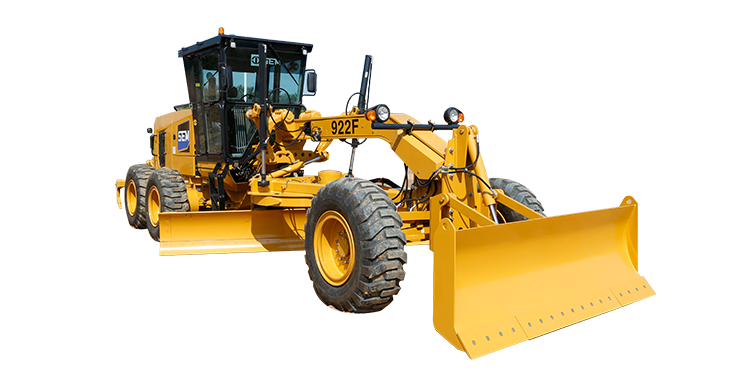

922F AWD SEM 922F AWD Specifications & Technical Data (2026—2026)

Weight: 16.45t – Standard tyres: 17.5-25 16PR – Drive: A – Transport length: 11.1m – Transport width: 2.63m – Transport height: 3.14m

Technical specs - 922F AWD SEM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.45 t
Standard tyres
17.5-25 16PR
Drive
A
Transport length
11.1 m
Transport width
2.63 m
Transport height
3.14 m
Mouldboard width
4.279 m
Travel speed
40 km/h
Turning radius outside
7.8 m
Model series
F
Engine manuf.
SDEC
Engine type
SC9D220-2G2
Engine power
162 kW
Revolutions at max torque
1500 rpm
Max. torque
920 Nm
Emission level
Tier 2

More technical details, like: steering mode, front blade width, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
